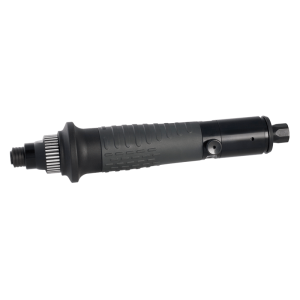

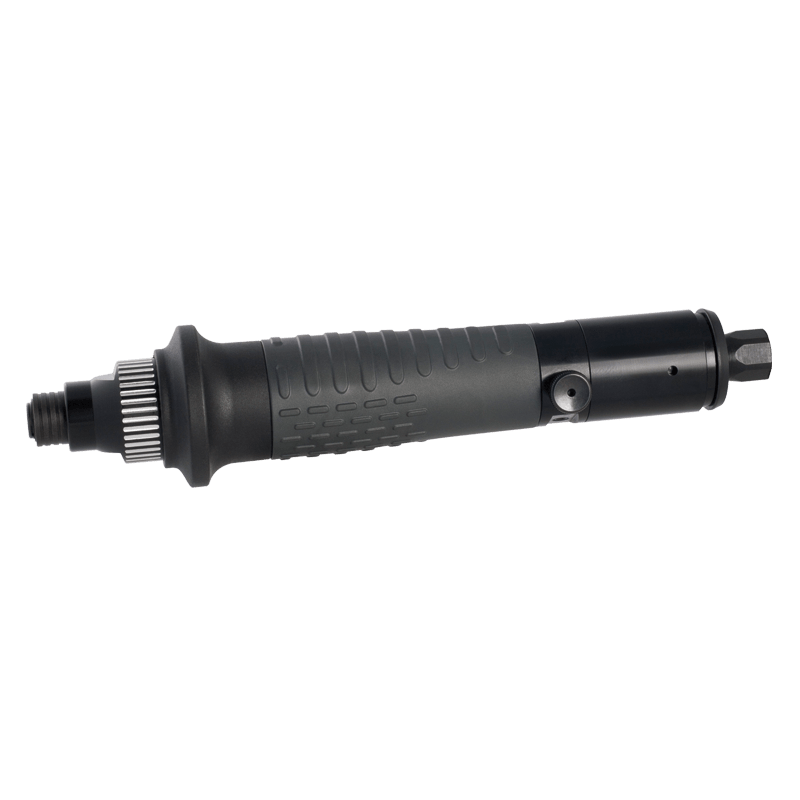

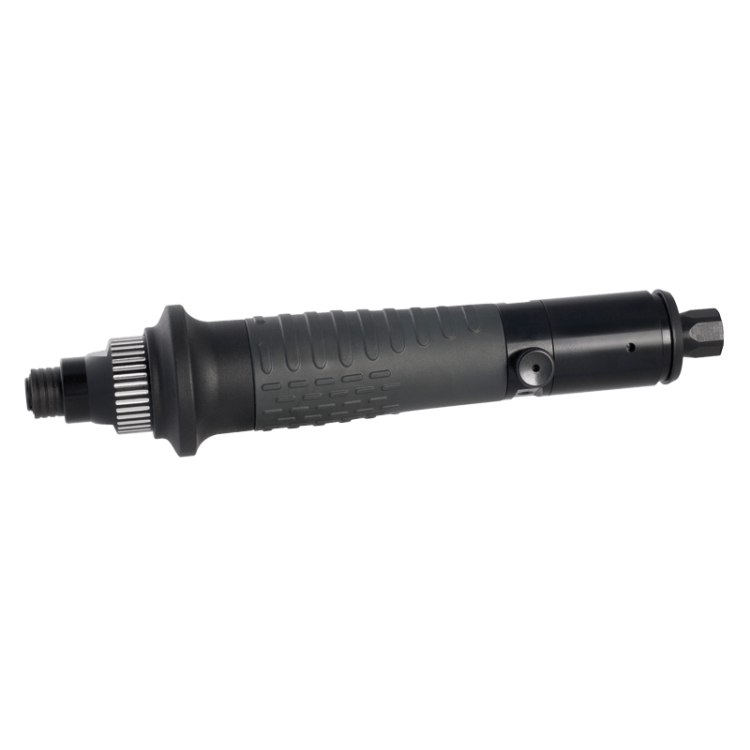

Pneumatic screwdriver (straight) 0,4 - 4,5Nm with ''Push to Start'' mechanism from DSEL - Straight series
Leave feedback on the product
Pneumatic screwdrivers from the DSEL series with a precise shut-off clutch, straight version, with Push to
Start mechanism, dedicated to use in a continuous production process.
DSEL screwdrivers are characterized by the highest quality materials and are dedicated to the most
demanding applications with high work intensity.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Vendors's code: DSEL A45P950
Barcode:
Product specification
Technical parameters
- Torque range [N·m] 0.4-4,5 N·m
- Model DSEL A45P950

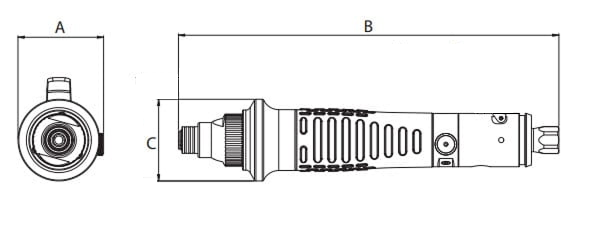

- Dimension A 51.4 mm
- Dimension B 229.2 mm
- Dimension C 49 mm
- Weight 590 g
- Noise level (dBA) 73
- Air consumption (L/min) 460
- Speed (rpm) 950
Description
The DSEL series screwdrivers straight type with and push to start mechanism, with low weight and the
ability to achieve torques from 0.4 to even 12 Nm. They are equipped with precise shut-off clutches - when the
set torque is reached, the air supply is cut off and the screwdriver mechanism stops immediately, such a
solution eliminates any doubts the operator has about achieving the set torque.
To start the tool it's enough to put bit in the head of the bolt and push the tool down verticaly.
The torque value is adjusted on the torque tool tester using a special tool, supplied with each screwdriver -
thanks to this, the operator cannot accidentally change it or make unauthorized adjustments.
The characteristic design allows for achieving high torque values, even up to 12 Nm and ensures easy
installation in specially dedicated reaction arms - required by health and safety regulations for pneumatic tools
with a torque above 5 Nm
DSEL series screwdrivers are dedicated to industrial use, they work perfectly in the most difficult conditions of
use with high frequency work, made of the highest quality materials, provide comfort of use combined with
high precision and reliability.
The most important advantages of DSEL Push to Start series screwdrivers:
- Featured with Push to Start mechanism
- Ability to reach up to 12 Nm without a reaction arm
- Precise shut-off clutch
- Protection against accidental or unauthorized change of torque value
- Dedicated to industrial use in a continuous production process
- High quality, made of the highest class materials
In our offer you will also find torque testers for adjustment and control of the offered pneumatic screwdrivers.
