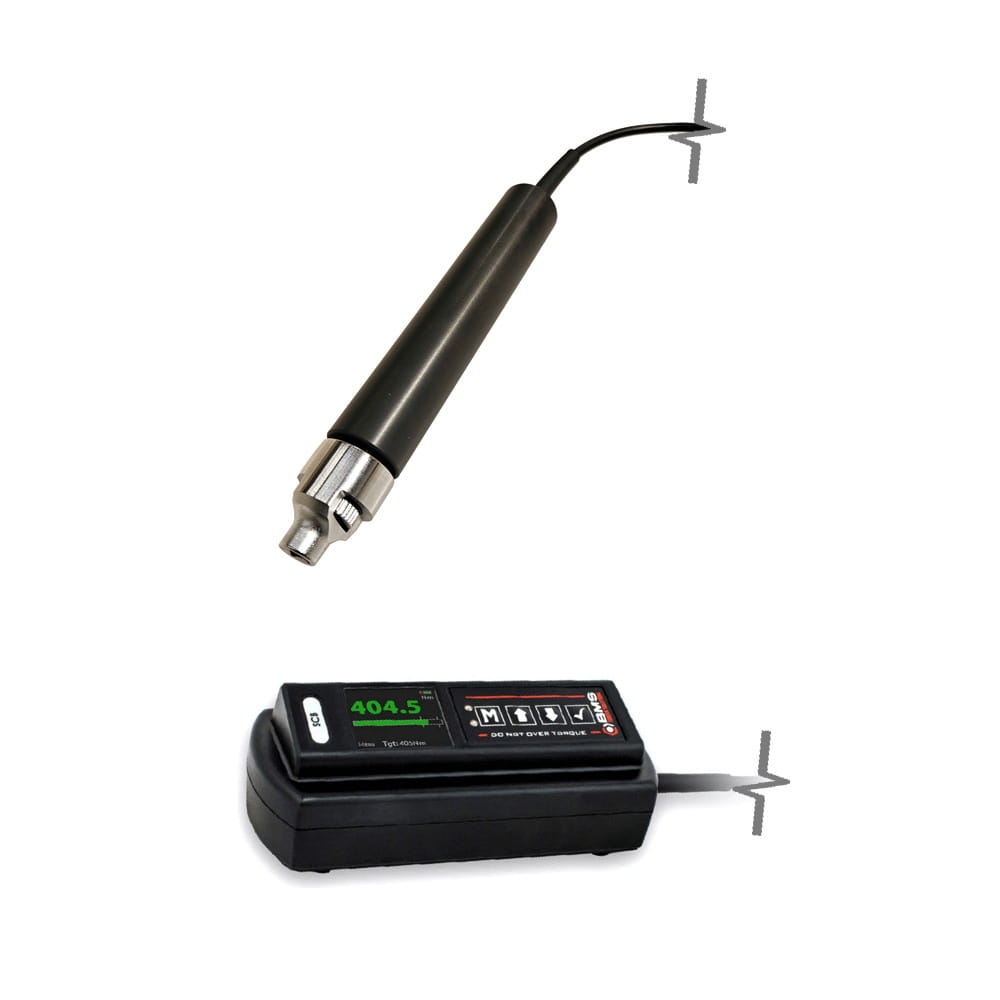

Electronic Torque Screwdriver 0.5-5 Nm MST005SBT - BMS Seria Bluetooth
Leave feedback on the product

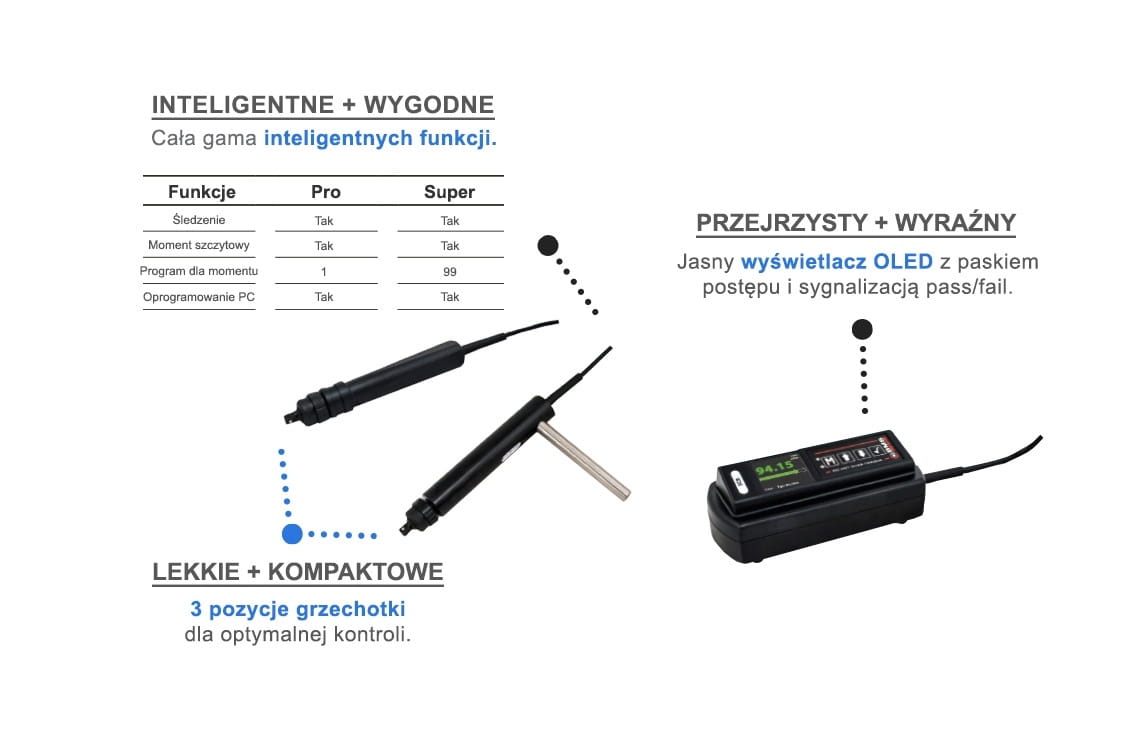

Electronic Torque Screwdrivers - Precision and Modernity

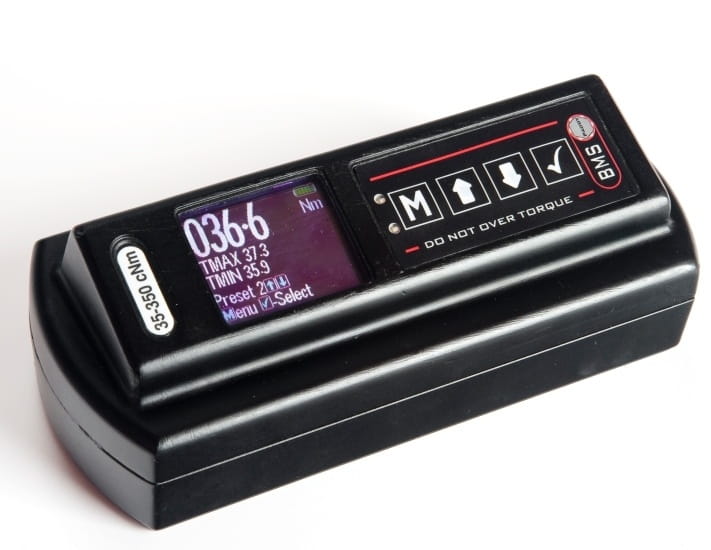

The screwdrivers offer a torque range from 5 cNm to 15 Nm and 1% accuracy. They feature a
display for reading at various angles and a memory capacity of 10000 measurements. The menu
includes functions Track, Peak, Preset
The device operates up to 100 hours on battery, with an automatic shutdown after 2 minutes of
inactivity. Screwdriver enables keypad locking feature. A signal LED indicates when the desired
torque is achieved.
The delivery includes batteries and an ISO 6789 calibration certificate, and the unit is packed in a
wooden case with a foam insert for safe transport.

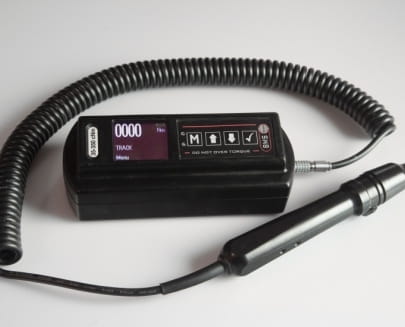

Attention! Standard version screwdrivers are supplied with a straight cable - the version with a coiled cable is available as an option at additional cost. Please specify your preferred version when placing your order.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Vendors's code: MST005SBT
Barcode:
Product specification
Technical parameters
- Drive size 1/4"
- Torque range [N·m] 0.5-5 N·m
- Tolerance ±1% CW/CCW
- Model MST005SBT
- Length 200 mm
- Weight 400 g
Description
Bluetooth Electronic Torque Screwdrivers
Bluetooth communication is available for all types of electronic torque screwdrivers, covering a range from 0.05 N·m to 15 N·m.
Communication Format Options
- Software developed by producer, provided with each tool.
- Communication Protocol – Allows integration with existing data collection systems. customer can create their software for communications according to their needs and requirements
Communication Range
- Stable data transmission up to approximately 12 meters from the Bluetooth receiver.
- Multiple tools can communicate simultaneously with a single Bluetooth receiver.
Communication via Bluetooth - main advances:
- Sending torque values and repetition counts to the tool.
- Receiving status information on completed operations (OK/NOK).
- Data logging and process analysis.
- Activating stored settings or uploading new configurations
- Supports single measurements, repeated measurements, and measurement sequences.
- Real-time monitoring of operator performance, with alerts shown on the tool's display if a measurement fails.
- Supervisors can accept or reject failed measurements remotely.
- Option to block further process steps if needed.
- Data export for archiving or printing.
Integration with Existing Data Systems
Bluetooth tools can be seamlessly integrated into existing customer data systems. Measurement data (torque, repetitions, etc.):
- is sent automatically from the system to the tool,
- and from the tool back to the system without operator intervention.
All electronic screwdrivers above 5 Nm are supplied with additional handle - it's designed to help to achieve higher torque values
