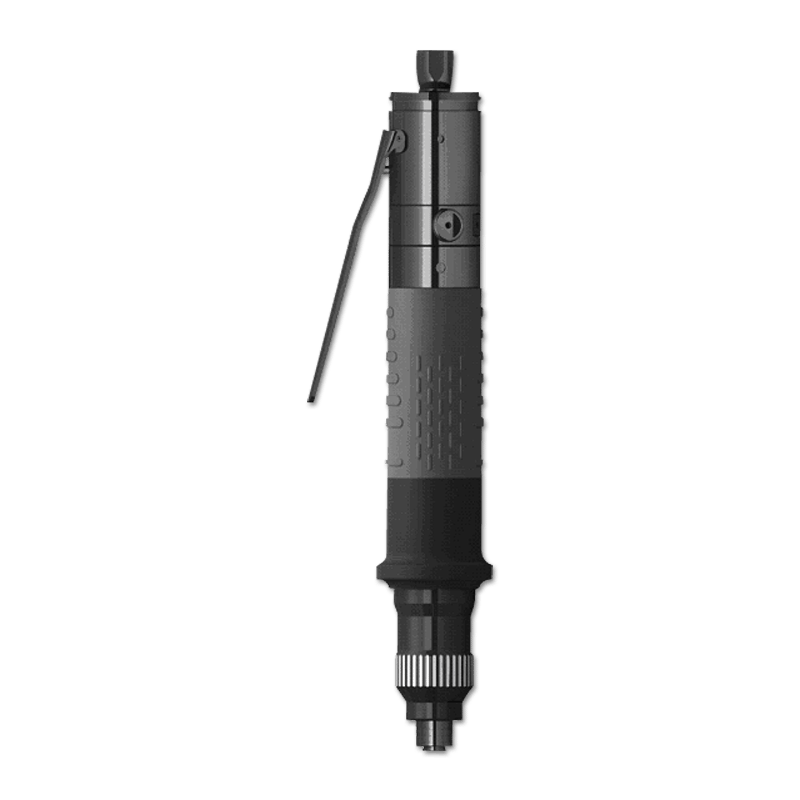

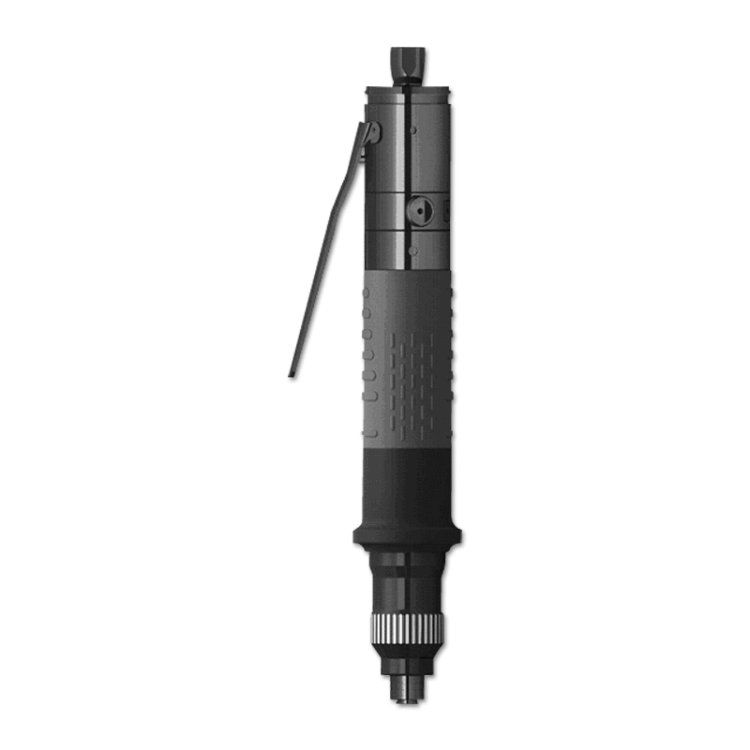

Pneumatic screwdriver (straight) 0,4 - 4,5Nm with lever start mechanism from DSEL - Straight series

Go to Product feedback

Pneumatic screwdrivers from the DSEL series with a precise shut-off clutch, straight version, with lever start mechanism, dedicated to use in a continuous production process.
DSEL screwdrivers are characterized by the highest quality materials and are dedicated to the most demanding applications with high work intensity.

Go to full description

€853.74

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: > 20 days

Technical parameters

Torque range [N·m] 0.4-4,5 N·m
Model DSEL A45L950

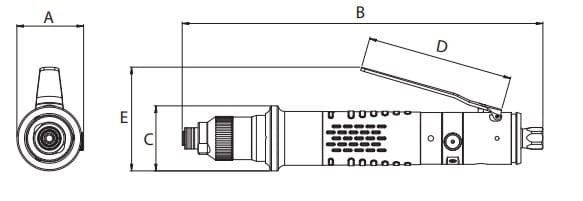

Dimension A 51.4 mm
Dimension B 228.3 mm
Dimension C 49 mm
Dimension D 70.5 mm
Dimension E 62 mm
Weight 600 g
Noise level (dBA) 73
Air consumption (L/min) 460
Speed (rpm) 950

Description

The DSEL series screwdrivers straight type with and lever start mechanism, with low weight and the ability
to achieve torques from 0.4 to even 12 Nm. They are equipped with precise shut-off clutches - when the set
torque is reached, the air supply is cut off and the screwdriver mechanism stops immediately, such a solution
eliminates any doubts the operator has about achieving the set torque.

The torque value is adjusted on the torque tool tester using a special tool, supplied with each screwdriver -
thanks to this, the operator cannot accidentally change it or make unauthorized adjustments.
The characteristic design allows for achieving high torque values, even up to 12 Nm and ensures easy
installation in specially dedicated reaction arms - required by health and safety regulations for pneumatic tools
with a torque above 5 Nm

DSEL series screwdrivers are dedicated to industrial use, they work perfectly in the most difficult conditions of
use with high frequency work, made of the highest quality materials, provide comfort of use combined with
high precision and reliability.

The most important advantages of DSEL Lever Start series screwdrivers:
