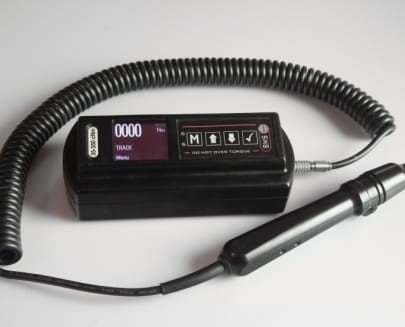

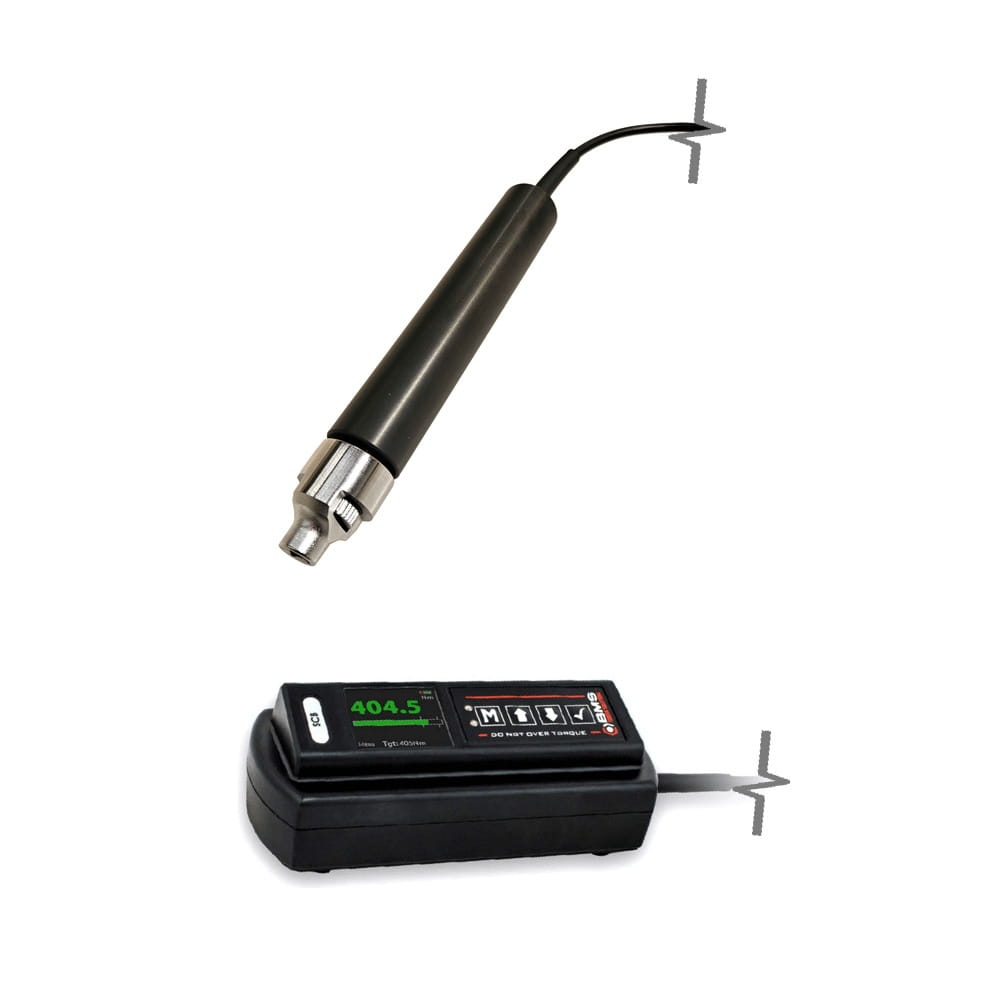

Electronic Torque Screwdriver 0.05-0.5 Nm MS050SBT - BMS Bluetooth Series
Leave feedback on the product

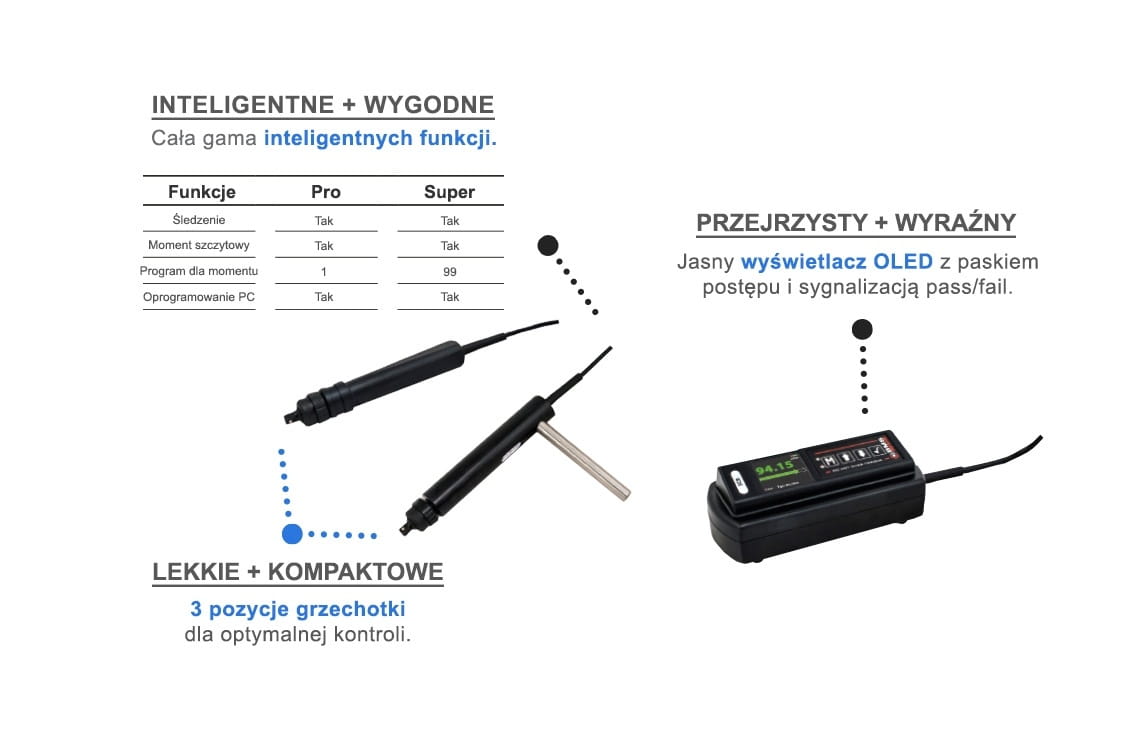

Electronic torque screwdrivers - precision and modernity

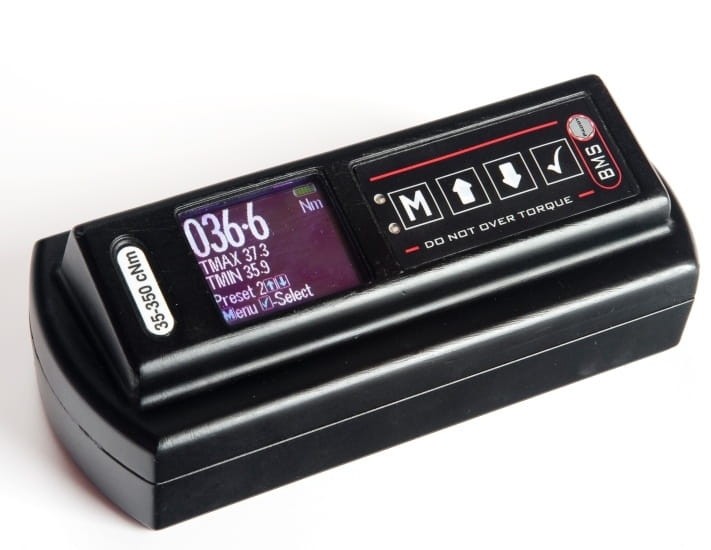

The screwdrivers offer a torque of 5 cNm to 15 Nm and an accuracy of 1%. Equipped with
display for reading from different angles and memory for UP to 10000 measurements. Menu
includes Peak, Track, Preset functions
The device works several hours on battery, with the option of automatic shutdown (by default after
2 minutes). The screwdrivers have the ability to lock the keypad. An indicator LED informs you about the
reaching the set tightening torque.
Delivery includes batteries and ISO 6789 calibration certificate, and the whole is packed in a wooden
foam case for transport safety.
Attention! Standard version screwdrivers are supplied with a straight cable - the version with a coiled cable is available as an option at additional cost. Please specify your preferred version when placing your order.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Vendors's code: MS050SBT
Barcode:
Product specification
Technical parameters
- Drive size 1/4"
- Torque range [N·m] 0.05-0.5 N·m
- Torque range [cN·m] 5 - 50 cN·m
- Tolerance ±1% CW/CCW
- Model MS050SBT
- Length 170 mm
- Weight 720 g
Description
Bluetooth Electronic Torque Screwdrivers
Bluetooth communication is available for all types of electronic torque screwdrivers, covering a range from 0.05 N·m to 15 N·m.
Communication Format Options
- Software developed by producer, provided with each tool.
- Communication Protocol – Allows integration with existing data collection systems. customer can create their software for communications according to their needs and requirements
Communication Range
- Stable data transmission up to approximately 12 meters from the Bluetooth receiver.
- Multiple tools can communicate simultaneously with a single Bluetooth receiver.
Communication via Bluetooth - main advances:
- Sending torque values and repetition counts to the tool.
- Receiving status information on completed operations (OK/NOK).
- Data logging and process analysis.
- Activating stored settings or uploading new configurations
- Supports single measurements, repeated measurements, and measurement sequences.
- Real-time monitoring of operator performance, with alerts shown on the tool's display if a measurement fails.
- Supervisors can accept or reject failed measurements remotely.
- Option to block further process steps if needed.
- Data export for archiving or printing.
Integration with Existing Data Systems
Bluetooth tools can be seamlessly integrated into existing customer data systems. Measurement data (torque, repetitions, etc.):
- is sent automatically from the system to the tool,
- and from the tool back to the system without operator intervention.
All electronic screwdrivers above 5 Nm are supplied with additional handle - it's designed to help to achieve higher torque values
Additional Materials
