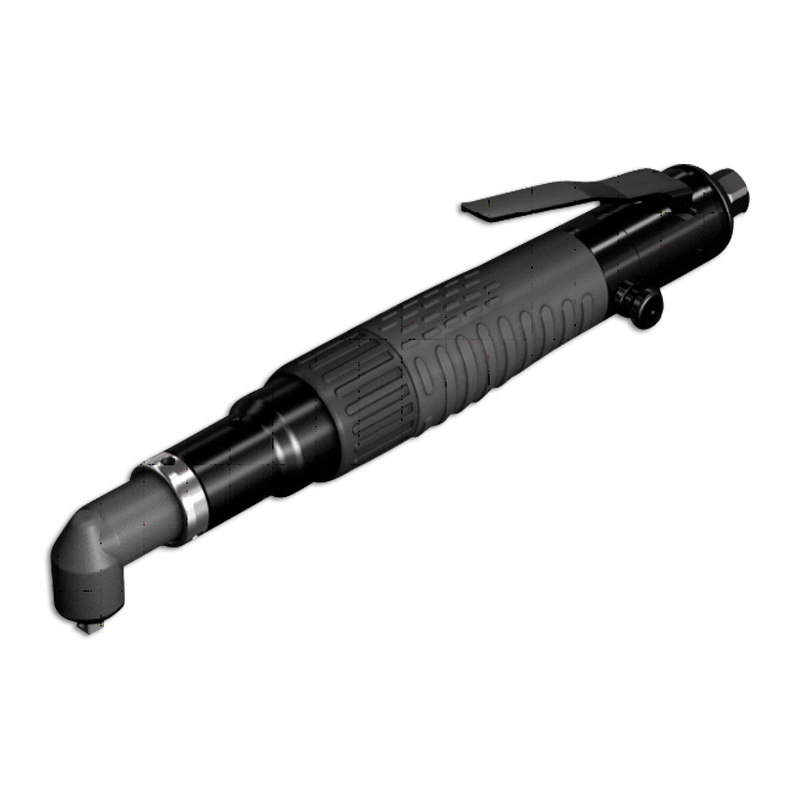

Pneumatic screwdriver (angular) 0,8 - 3Nm with square drive 1/4'' DSEL - Angular series

Go to Product feedback

Pneumatic screwdrivers from the DSEL series with a precise shut-off clutch, angle version and square drive, with lever start mechanism, dedicated to use in a continuous production process.
DSEL screwdrivers are characterized by the highest quality materials and are dedicated to the most demanding applications with high work intensity.

Go to full description

€1,111.91

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: > 20 days

Technical parameters

Torque range [N·m] 0.8-3 N·m
Model DSEL-RA30L1400

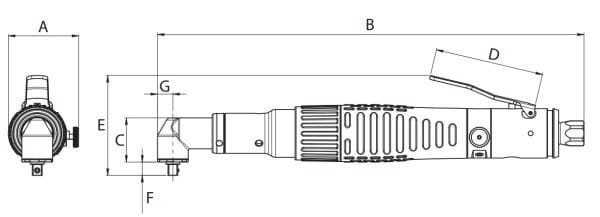

Dimension A 45.5 mm
Dimension B 276.3 mm
Dimension C 28.7 mm
Dimension D 70.5 mm
Dimension E 64.8 mm
Dimension F 8.6 mm
Dimension G 10 mm
Weight 0.7 kg
Noise level (dBA) 73
Air consumption (L/min) 460
Speed (rpm) 1400

Description

The DSEL series screwdrivers angle type with square drive and lever start mechanism, with low weight and the ability to achieve torques from 0.8 to even 5 Nm. They are equipped with precise shut-off clutches - when the set torque is reached, the air supply is cut off and the screwdriver mechanism stops immediately, such a solution eliminates any doubts the operator has about achieving the set torque.

The torque value is adjusted on the torque tool tester using a special tool, supplied with each screwdriver -
thanks to this, the operator cannot accidentally change it or make unauthorized adjustments.
The angled design provides access to confined and hard-to-reach places, while the square drive
allows for use with all standard sockets available on the market
DSEL series screwdrivers are dedicated to industrial use, they work perfectly in the most difficult conditions of
use with high frequency work, made of the highest quality materials, provide comfort of use combined with
high precision and reliability.

The most important advantages of DSEL Lever Start series screwdrivers:
- Angle type tools
- Featured with Lever Start mechanism
- Ability to reach up to 12 Nm without a reaction arm
- Precise shut-off clutch
- Square drive allows to use all market available sockets
- Protection against accidental or unauthorized change of torque value
- Dedicated to industrial use in a continuous production process
- High quality, made of the highest class materials

In our offer you will also find torque testers for adjustment and control of the offered pneumatic screwdrivers.
