Manufacturer: Stahlwille (go to products)

Electronic Tightening Angle Torque Wrench 20-400 Nm SENSOTORK® 713R/40 20-400 N·m with reversible ratchet tool

Go to Product feedback

When precise tightening based on the torque angle is required, the SENSOTORK® 713R is the perfect solution. This torque wrench with angle measurement, designed for both clockwise and counterclockwise operation, features an exceptionally adaptable measuring range. It accurately records both the applied angle and torque, regardless of the force application point, effectively minimizing human errors. Additionally, the display deviation is ±1%for the angle of rotation and ±1%for torque.

Go to full description

€1,648.21

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: 24 hours

Technical parameters

Adapter size 14x18 mm
Drive size 3/4"
Torque range [N·m] 20-400 N·m
Tolerance ±1% CW/CCW
Angle measurement accuracy ±1°

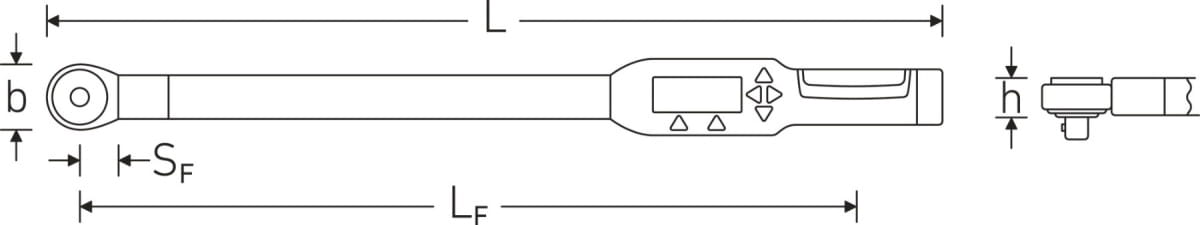

Dimension B 50 mm
Dimension H 31.5 mm
Dimension L 838 mm
Dimension Lf 750 mm
Dimension Sf 25 mm
Battery type Mignon (AA) 1,5V
Ratchet teeth 60
Weight 2.32 kg
Weight with packaging (kg) 5.56 kg

Description

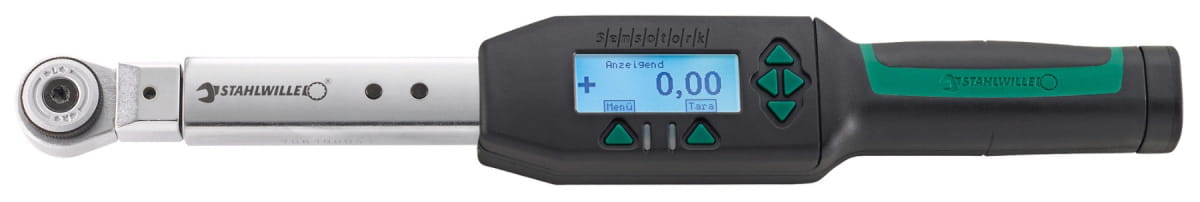

Electronic Angle Torque Wrenches Stahlwille SENSOTORK® 713R

The Stahlwille SENSOTORK® 713R series electronic angle torque wrenches are advanced tools combining the precision of electronics with the reliability of mechanics. Designed for professionals who demand the highest accuracy, repeatability and working comfort.

Product Features

High accuracy: torque reading precision of ±1% and angle of rotation ±1°, compliant with DIN EN ISO 6789-2 and VDI/VDE 2648-2 standards.

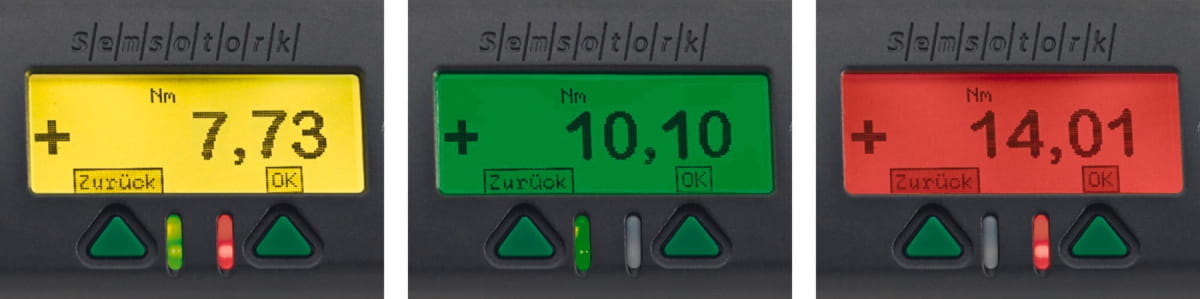

Digital display: large LCD screen with multicolour backlighting allows simultaneous reading of torque and angle of rotation, while multicolour traffic-light signalling visually indicates the status of the tightening process.
Triple-sense signalling: the achieved torque is signalled simultaneously by visual, acoustic and vibration alerts, ensuring confidence in correct tightening even in demanding working conditions.
Ergonomic design: lightweight, durable housing and a comfortable grip provide comfort even during intensive use. The wrench is supplied in a sturdy plastic case.
Wide range of applications: available models cover various torque ranges (3–60 N·m, 10–200 N·m and 20–400 N·m), making the tools suitable for a wide variety of applications in automotive, industry and service.

All Stahlwille SENSOTORK® 713R series torque wrenches are equipped with 9×12 mm or 14×18 mm adapters (depending on the measuring range), allowing the use of various insert tools and plug-in ratchets. Every model features a reversible ratchet no. 735 and a QuickRelease safety lock.

Advantages

Easy and fast torque adjustment via the intuitive on-screen menu
Durability and resistance to mechanical damage
Precise and reliable performance over a long period of time, with automatic notification of the next calibration date

The Stahlwille SENSOTORK® 713R is an excellent choice for specialists looking for a precise tool for controlled tightening that meets even the most stringent requirements.
