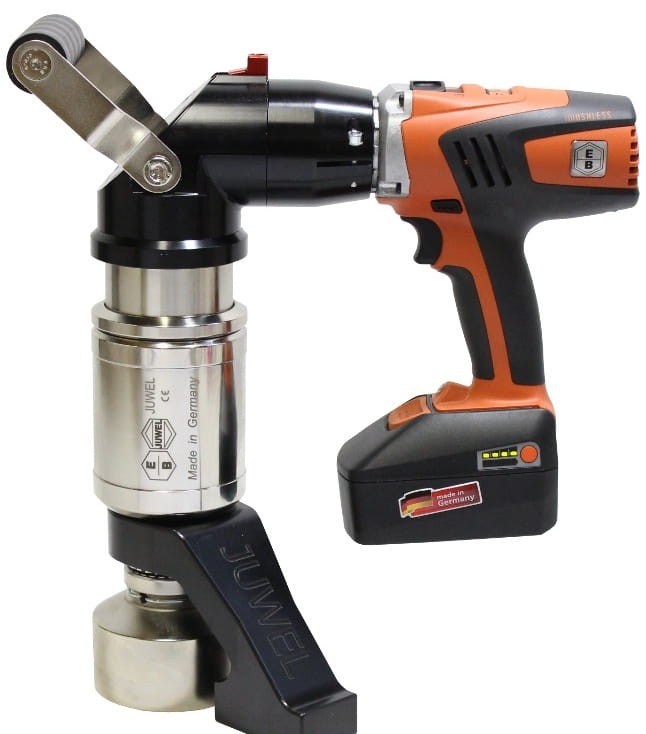

Cordless screwdriver C87 wrench (angular) 100-650Nm from TQWS- 065 Series

Go to Product feedback

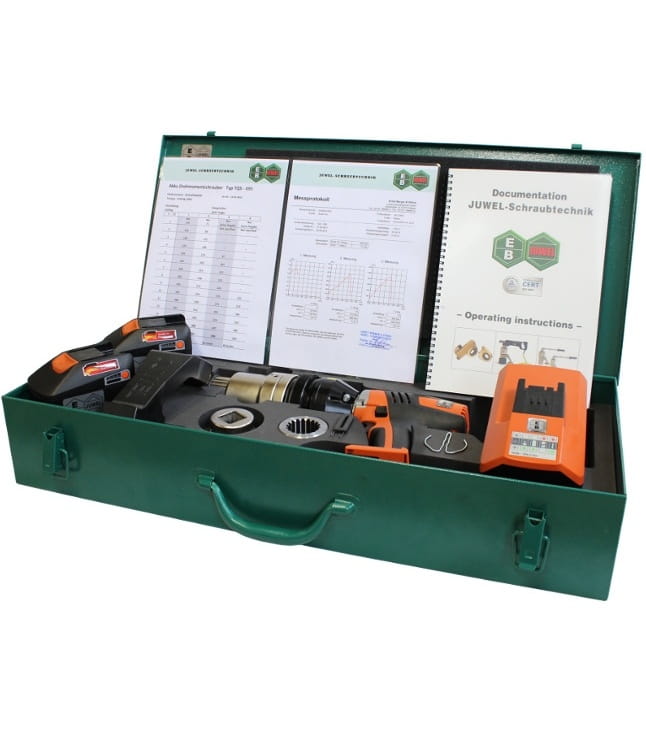

Straight typ Battery-Powered Torque Wrenches from the TWQS Series are ideal for use in situations where access to power supply is limited, in hard-to-reach or confined spaces—anywhere the operator requires freedom of movement and the ability to apply high torque. The battery-powered torque wrenches are available in versions with a maximum torque capacity of up to 10, 000 Nm and are equipped with 4-speed gear transmissions. All models are driven by brushless motors, use lithium-ion batteries with a charging time of no more than 30 minutes to full capacity, and are delivered with a certificate and torque chart. Each wrench comes in a metal case with custom foam inserts for safe storage and transport. The gear systems and electronics are protected against external factors such as water, dust, and other contaminants commonly found on construction sites, wind farms, and in industrial facilities.
The ability to rotate the drive 360o in relation to the gearbox makes TQWS torque wrenches among the most versatile tools available on the market

Product available on order. Contact us for details.

Go to full description

€0.00

Shipping costs are not included in the price.

Request an offer

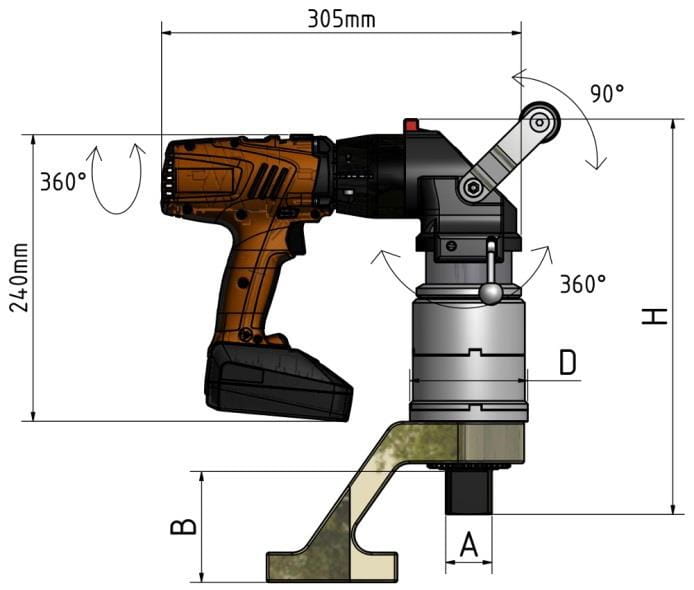

Technical parameters

Drive Size A 3/4"
Torque range [N·m] 100-650 N·m
Tolerance ±4%
Model TQWS- 065
Dimension B 55 mm
Dimension L 264 mm
Dimension Ø 75 mm
Weight 6 kg
Weight of support arm (kg) 0.5 kg
Speed on gear 1 (rpm) 8
Speed on gear 2 (rpm) 16
Speed on gear 3 (rpm) 36
Speed on gear 4 (rpm) 70

Description

Straight type battery-powered torque wrenches from the TQS series are perfectly suited for use in areas
where access to a power supply is limited, in tight or hard-to-reach spaces—anywhere the operator needs
freedom of movement and high torque application. Battery-powered torque wrenches are excellent as production or service tools and can be successfully
used across all industrial sectors.The battery-powered torque wrenches are available in versions with a maximum torque range of up to
10,000 Nm and are equipped with 4-speed gear transmissions.
All models are driven by brushless motors, feature lithium-ion batteries with a charging time of less
than 30 minutes to full capacity, and are delivered complete with a certificate and torque chart.

Biggest advantages for TQS series:

Gearbox 100% developed and produced in-house in Rhineland-Palatinate since 1980
4 gears with 15 torque settings each
Brushless PowerDrive motor guarantees sustainable us
The ability to rotate the drive 360° in relation to the gearbox
Lithium-ion battery with SafetyCell Technology guarantees years of safe battery use
Drive and gearbox made in Germany
High speeds for precise and fast bolting
Electronically controlled and precise torque control: screwdriver switches off automatically after successful screw fastening
Visual and acoustic signal when a defined battery charge is reached
Motor and electronics are completely dust-protected
Quick charger ensures full battery capacity in under 30 minutes. Powerful capacity of 6 Ah for continuous screwdriving
High-strength special alloys and carefully selected bearings bring out the highest gear quality
