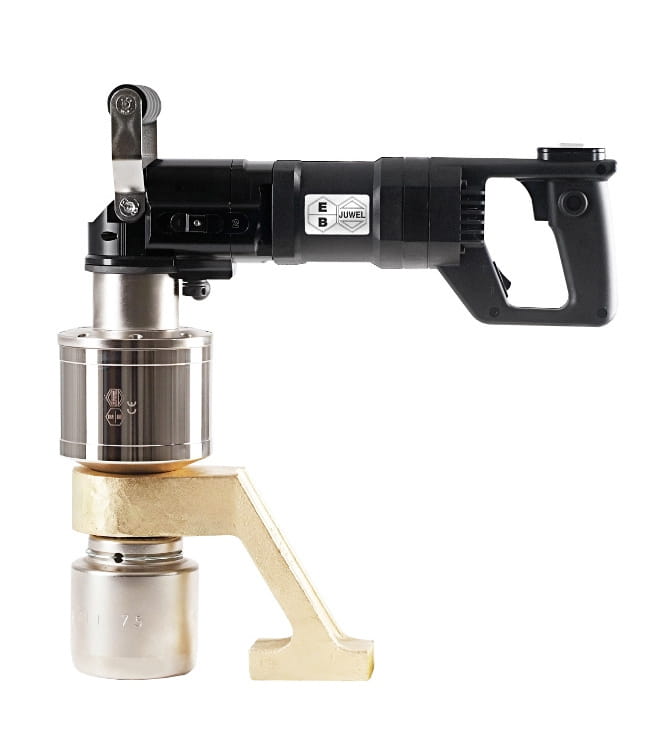

Electric screwdriver (angular) 280-1200Nm TEWS-104/105 series

Go to Product feedback

TEWS series electric torque wrenches are the ideal tools for working with high torque values - up to 15, 000 Nm. Easy to use, equipped with durable motors with sufficient power reserves and extremely robust gearboxes, they are well-suited for the most demanding working conditions. TEWS wrenches offer very high accuracy of ±3. 5%. Each tool comes with an individual calibration certificate and a torque chart allowing the selection of up to 200 torque settings. A metal case is included to ensure safe transport and storage of the tool.
The ability to rotate the drive 360o in relation to the gearbox makes TEWS torque wrenches among the most versatile tools available on the market.

Product available on order. Contact us for details.

Go to full description

€0.00

Shipping costs are not included in the price.

Request an offer

Technical parameters

Drive Size A 1"
Torque range [N·m] 280-1200 N·m
Tolerance ±3.5%
Model TEWS-104/105

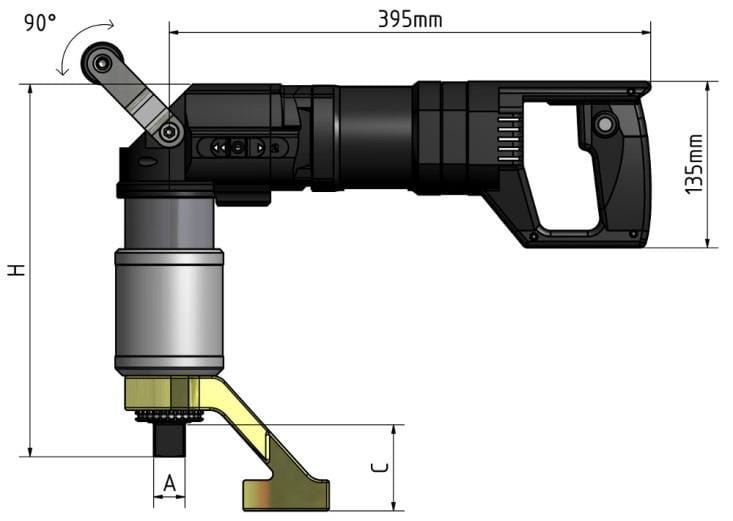

Gear diameter 88 mm
Dimension C 75 mm
Dimension H 275 mm
Weight 9.9 kg
Weight of support arm (kg) 1,6 kg
Speed (rpm) 14

Description

TEWS series electric torque wrenches provide users with the ability to apply high torque levels, thanks to a
specially designed gearbox capable of generating up to 15,000 Nm. This makes them an excellent
alternative to hydraulic and pneumatic torque wrenches.

The ability to rotate the drive 360° in relation to the gearbox gives the user additional flexibility when
working in hard-to-reach areas.

Each wrench comes with its own individual calibration certificate and a torque chart featuring 200
preset tightening values. TEWS wrenches can also be used for loosening previously tightened joints.
The included reaction arm ensures safety and user comfort. Additionally, a reaction ring can be
purchased separately if the standard arm is not suitable, allowing users to fabricate a custom reaction arm.

Key advantages of the TEWS series:
