Manufacturer: Stahlwille (go to products)

Torque wrench 80-400N·m 730 Quick with holder for insert tools 14x18 mm

Go to Product feedback

Stahlwille mechanical torque wrenches are a guarantee of the highest quality. Unique design eliminates the need for unloading after use! Available in various models with torque ranges from 4 up to 1000 Nm.

Go to full description

€371.12

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: 24 hours

Technical parameters

Adapter size 14x18 mm
Torque range [N·m] 80-400 N·m
Tolerance ±4%
Length 590 mm
Height 23 mm
Width 28 mm

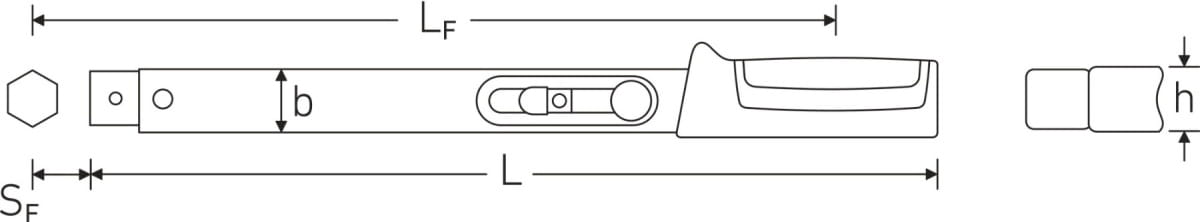

Dimension Lf 570 mm
Dimension Sf 25 mm
Scale increase 10 N·m
Weight 1.54 kg

Description

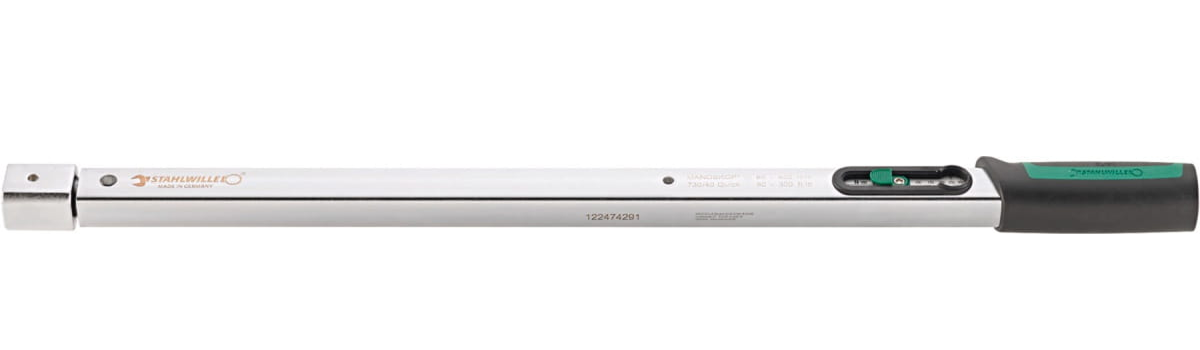

Stahlwille 730 QUICK torque wrenches feature unique mechanism that eliminates the need to
unload the tool after use. As a result, the wrench can remain set to the desired torque value without
affecting its accuracy or lifespan.

Build from premium-grade materials, they deliver exceptional precision, reliability and durability—even
under the most demanding conditions.

End fitting adapters allow for use of all available on the market open or ring-type end fittings, with
adapters 9x12 mm, 14x18 mm, or 22x28 mm - depending on the torque range of the given wrench
The 730 QUICK series wrenches feature a torque-setting mechanism operated by a slider released
by a lock-button located at the end of the handle.

Each wrench is supplied with a calibration certificate and a durable plastic carrying/storage case.

Key advantages of the 730 QUICK series:

No unloading required after use, thanks to the unique wrench design
Manufactured from the highest-quality materials
Distinctive, clearly perceptible and loud "click"
Very high accuracy - +/-4%
Outstanding long-term durability

The wrench mechanism also incorporates separate adjustment screws for the lower and upper torque
ranges, greatly simplifying fine-tuning during routine calibration.
Models are available from 4 Nm up to 1000 Nm.
