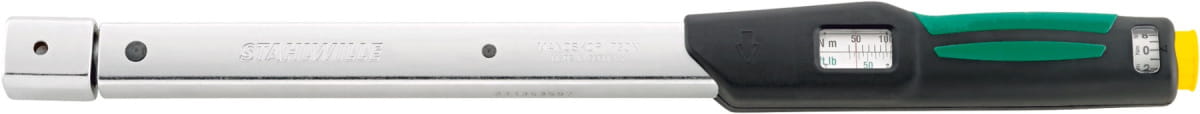

Torque wrench 40-200 N·m MANOSKOP® 730/20 Fix with mount for insert tools 14x18 mm
Leave feedback on the product
Torque wrenches from the Stahlwille 730 FIX series are top-quality tools designed for making connections with a specified torque value. The greatest advantage of this series is the ability to lock the torque adjustment mechanism on the wrench – which ensures a 100% guarantee of performing connections with the same torque and protects against any unauthorized changes.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Vendors's code: 96503020
Barcode: 4018754269464
Product specification
Technical parameters
- Adapter size 14x18 mm
- Torque range [N·m] 40-200 N·m
- Tolerance ±3%
- Model 730 Fix/20

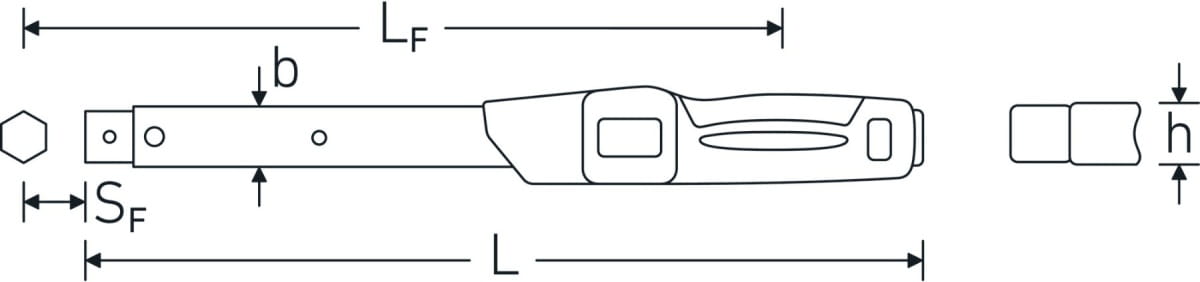

- Dimension B 28 mm
- Dimension H 23 mm
- Dimension L 467 mm
- Dimension Lf 424,5 mm
- Dimension Sf 25 mm
- Scale increase 1 N·m
- Weight 1.27 kg
- Weight with packaging (kg) 1.89 kg
Description
Technologies and Performance Features
Lock Settings (Protection against unauthorised torque adjustment)
The target torque can be quickly set using the adjustment knob. The knob can then be removed to prevent subsequent adjustment. The included locking screw and adhesive seal provide additional protection against tampering.
Factory Calibration Certificate (ISO Calibration)
The ISO calibration certificate guarantees that the device has undergone rigorous testing under controlled conditions, ensuring high quality and measurement accuracy.
This gives the user confidence that the tool will perform in accordance with the requirements of ISO 6789 and other international standards, thereby enhancing the reliability and credibility of the equipment in a professional working environment.
Rod Mechanism – No Need to Release the Mechanism After Use
The torque wrench is fitted with a patented, wear-resistant rod mechanism. Unlike traditional torque wrenches with spring mechanisms, the 730 FIX series torque wrenches do not require the mechanism to be released after use.
The wrench can remain set to a specific torque for an extended period without adversely affecting its accuracy or wear.
QuickRelease
The QuickRelease safety lock prevents insert tools from being accidentally lost. They are held securely in place and can be released again at the touch of a button, allowing for quick tool changes.
2-Component Handle
Our 2-component handle is non-slip and ergonomically shaped. It is resistant to oils, greases, fuels, brake fluids and Skydrol. The arrow on the lever indicates the direction of operation.
Features
- Trigger mechanism
- No need to release after use
- Socket for attaching interchangeable bits
- QuickRelease latch mechanism
- Quick, precise adjustment via the QuickSelect dial
- Dual stop signal
- Clear and highly legible dual scale with colour-coded torque values
- Operation in a counter-clockwise direction is also possible by rotating the plug-in end
- Further loading of the wrench ‘after the click’ or overloading in the direction opposite to the intended use does not affect the release mechanism, preventing damage
- 2-component handle with an ergonomically designed green soft component (resistant to oils, greases, fuels, brake fluids and Skydrol)
- Calibration certificate included
- In a sturdy plastic box (sizes 80–100 in a steel sheet cassette)
- Reading deviation ± 3%
Key Product Features
Easy to Use
Quick external adjustment; no need to remove the torque wrench, with two adjustment points for maximum and minimum values.
Clear, Precise Adjustment
Easy to use and clear dual scale in N·m/ft·lb enables precise and easy adjustment of the target torque to ensure reliable and accurate application.
Additional Materials
Pliki do pobrania
User Manual.pdf
655.28 kB
Complete product user manual
Product Sheet.pdf
285.93 kB
Technical product specification
