Manufacturer: Stahlwille (go to products)

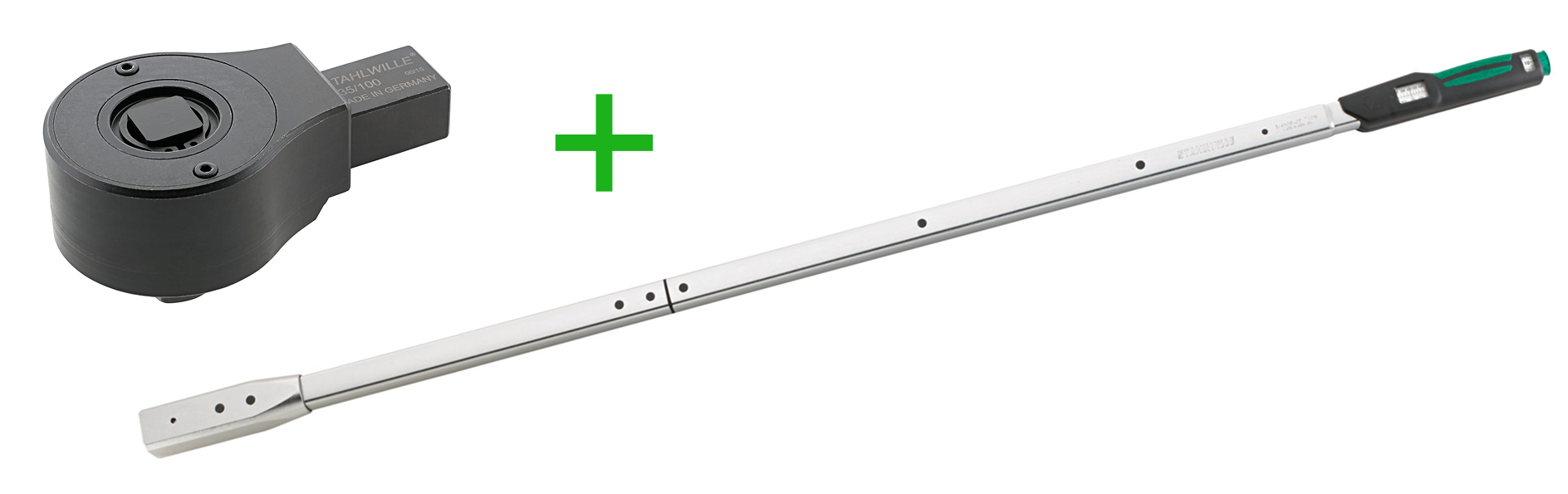

Torque wrench 200-1000 Nm MANOSKOP® 730N/100 with ratchet head 3/4" and holder for insert tools 22x28 mm

Go to Product feedback

Stahlwille 730N mechanical torque wrenches are a guarantee of the highest quality. Unique design eliminates the need for unloading after use! Available in various models with torque ranges from 4 up to 1000 Nm.

Go to full description

€1,340.06

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: 24 hours

Technical parameters

Adapter size 22x28 mm
Drive size 3/4"
Torque range [N·m] 200-1000 N·m
Tolerance ±3%
Model 730N/100

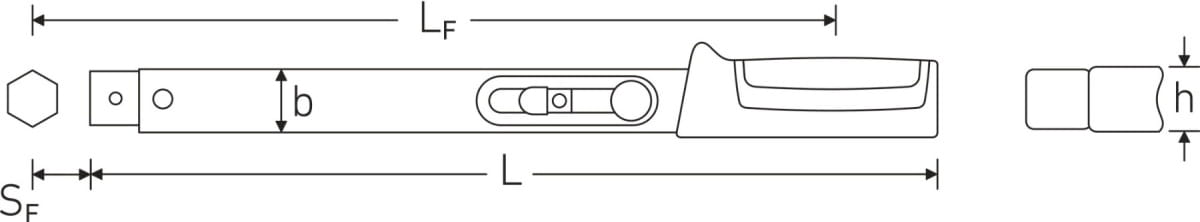

Dimension B 30.6 mm
Dimension H 25.6 mm
Dimension L 1363 mm
Dimension Lf 1352 mm
Dimension Sf 55 mm
Scale increase 5 N·m
Weight 5 kg

Description

Stahlwille 730N torque wrenches feature unique mechanism that eliminates the need to unload the
tool after use. As a result, the wrench can remain set to the desired torque value without affecting its
accuracy or lifespan.

Build from premium-grade materials, they deliver exceptional precision, reliability and durability—even
under the most demanding conditions.

End fitting adapters allow for use of all available on the market open or ring-type end fittings, with
adapters 9x12 mm, 14x18 mm, or 22x28 mm - depending on the torque range of the given wrench.

The 730N series is equipped with a convenient end-cap adjustment dial, allowing for quick, easy and
very accurate torque setting.

Each wrench is supplied with a calibration certificate and a durable plastic carrying/storage case.

Key advantages of the 730N series:

No unloading required after use, thanks to the unique wrench design
Manufactured from the highest-quality materials
Distinctive, clearly perceptible and loud "click"
Very high accuracy - +/-3%
Outstanding long-term durability

The wrench mechanism also incorporates separate adjustment screws for the lower and upper torque
ranges, greatly simplifying fine-tuning during routine calibration.
Models are available from 4 Nm up to 1000 Nm.
