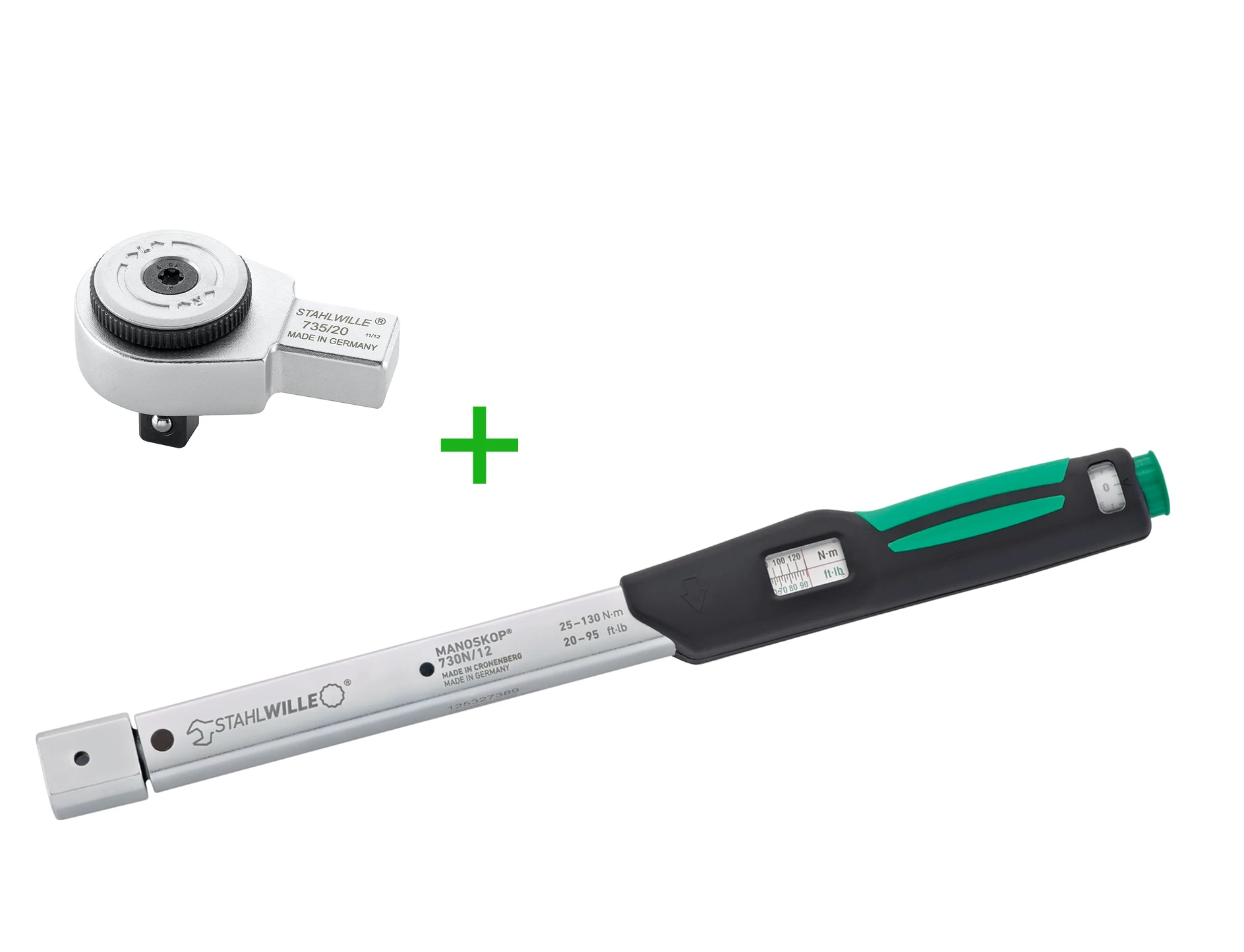

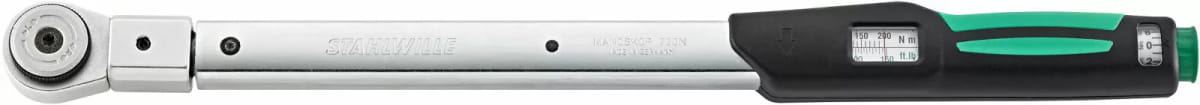

Torque wrench 20-100 Nm MANOSKOP® 730N/10 - 1/2" with ratchet head 1/2"
Leave feedback on the product
Stahlwille 730N mechanical torque wrenches are a guarantee of the highest quality. Unique design eliminates the need for unloading after use! Available in various models with torque ranges from 4 up to 1000 Nm.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Vendors's code: PR-50181010
Barcode:
Product specification
Technical parameters
- Adapter size 9x12 mm
- Drive size 1/2"
- Torque range [N·m] 20-100 N·m
- Tolerance ±3%

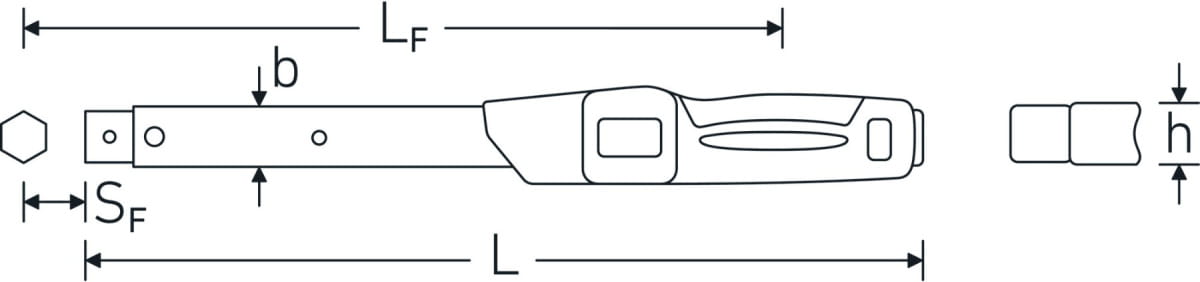

- Dimension B 28 mm
- Dimension H 23 mm
- Dimension L 386 mm
- Dimension Lf 336 mm
- Dimension Sf 17.5
- Scale increase 0,5 N·m
- Weight 1 kg
Description
Stahlwille 730N torque wrenches feature unique mechanism that eliminates the need to unload the
tool after use. As a result, the wrench can remain set to the desired torque value without affecting its
accuracy or lifespan.
Build from premium-grade materials, they deliver exceptional precision, reliability and durability—even
under the most demanding conditions.
End fitting adapters allow for use of all available on the market open or ring-type end fittings, with
adapters 9x12 mm, 14x18 mm, or 22x28 mm - depending on the torque range of the given wrench.
The 730N series is equipped with a convenient end-cap adjustment dial, allowing for quick, easy and
very accurate torque setting.
Each wrench is supplied with a calibration certificate and a durable plastic carrying/storage case.
Key advantages of the 730N series:
- No unloading required after use, thanks to the unique wrench design
- Manufactured from the highest-quality materials
- Distinctive, clearly perceptible and loud "click"
- Very high accuracy - +/-3%
- Outstanding long-term durability
The wrench mechanism also incorporates separate adjustment screws for the lower and upper torque
ranges, greatly simplifying fine-tuning during routine calibration.
Models are available from 4 Nm up to 1000 Nm.
