Manufacturer: BMS Ireland (go to products)

Torque wrench 13.5-135Nm TXW135ABT with Bluetooth communication - BMS Ireland with drive 3/8" with adapter 9x12mm

Go to Product feedback

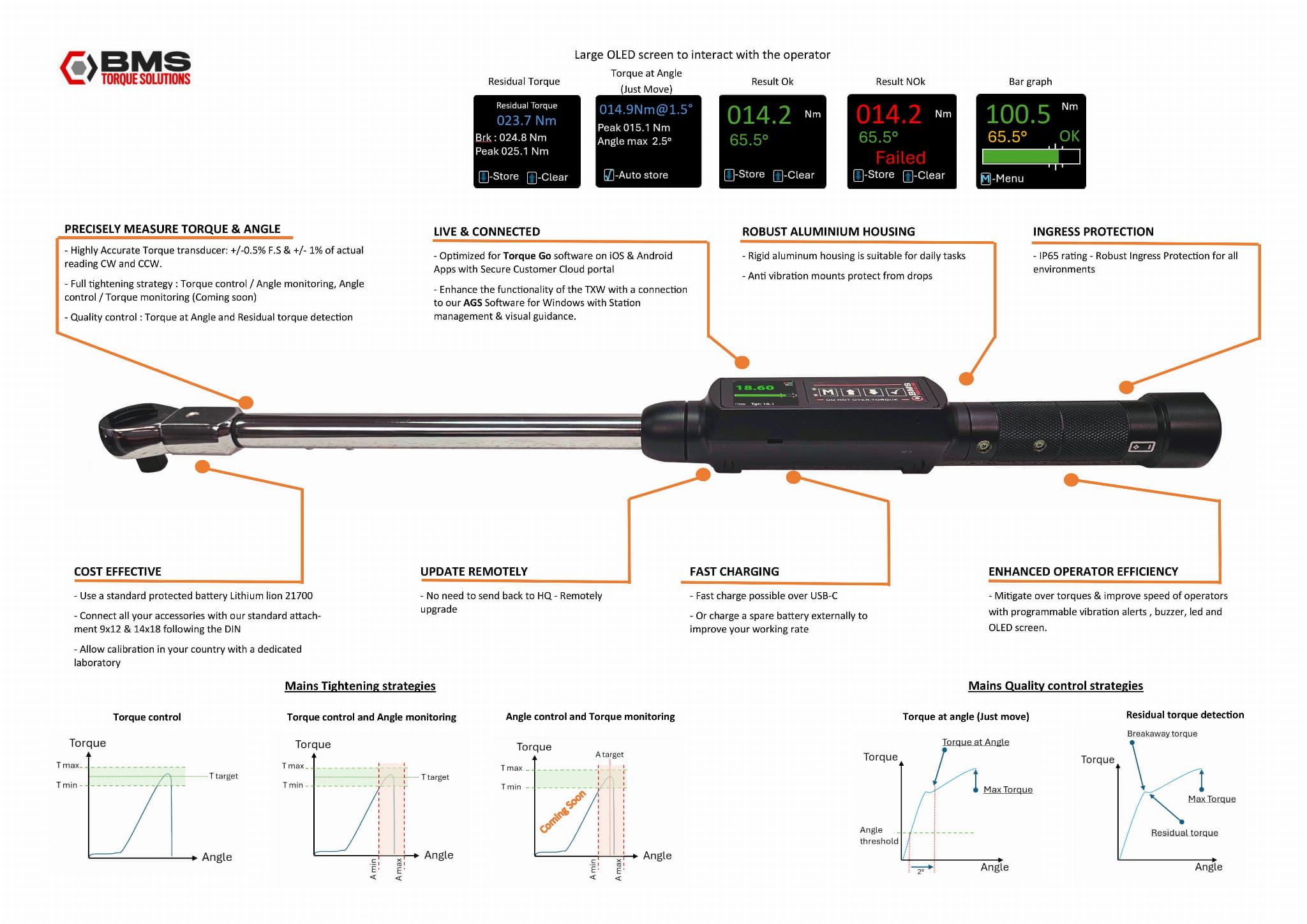

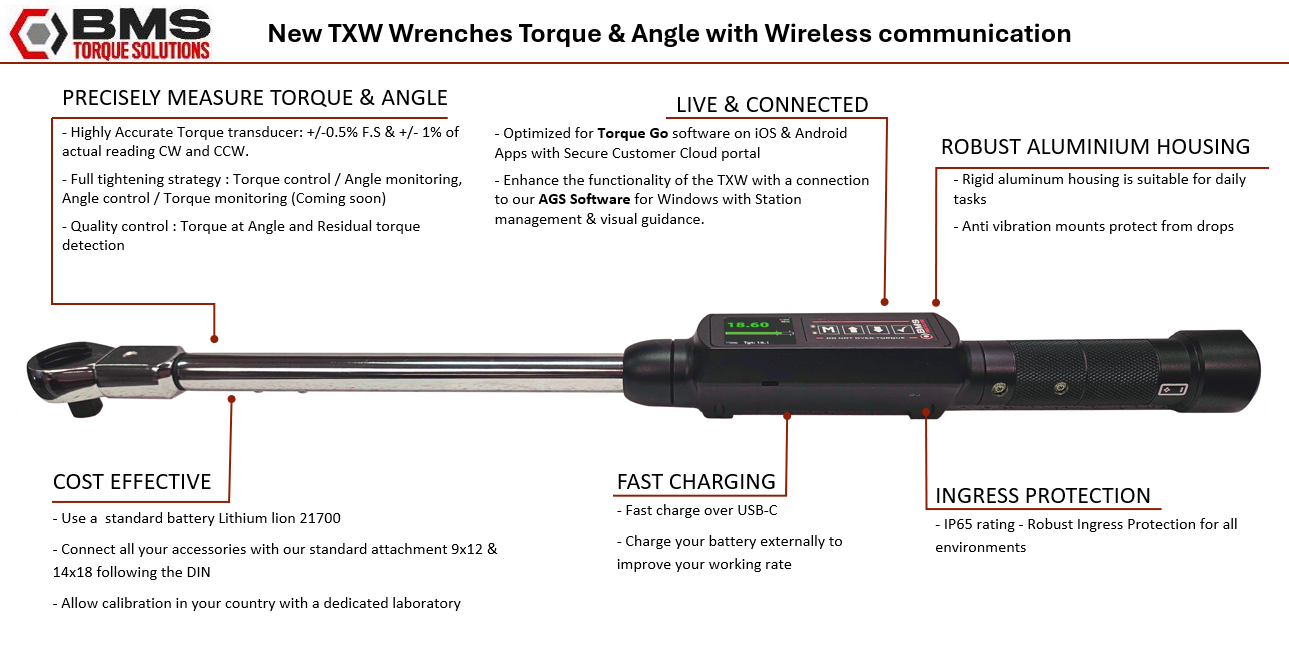

The newest series of BMS electronic torque wrenches – TWXABT with Bluetooth communication

All electronic torque wrenches from the TWXABT series by BMS are the latest and most durable tools of this brand, designed for the toughest working conditions – featuring an IP65 protection rating. They offer very high torque measurement accuracy of ±1% in both clockwise and counter-clockwise directions, as well as precise angle measurement with an accuracy of 1°. The TWXA series includes models ranging from 1 Nm to 2000 Nm, each equipped with an interchangeable ratchet and the option to use interchangeable open-end or ring-end heads.

Go to full description

€1,675.08

Shipping costs are not included in the price.

Quantity

szt.

Shipping time: 10 days

Technical parameters

Adapter size 9x12 mm
Drive size 3/8"
Torque range [N·m] 13.5-135 Nm
Tolerance 1%
Angle measurement accuracy 1°
Model TXW135ABT
Length 450 mm
Weight 1.2 kg

Description

Professional TWXABT Torque Wrenches – Bluetooth Version for Tasks in the Toughest Conditions

The TWXABT series wrenches are advanced torque tools with two-way Bluetooth communication, designed to operate in demanding industrial environments. The aluminum housing with an IP65 rating ensures resistance to moisture, dust, oils, and other environmental factors, allowing safe use in harsh working conditions.

TWXABT wrenches provide high torque accuracy of ±1% CW/CCW and angle ±1°, and the RESIDUAL TORQUE function allows additional control at the measurement point. Models available in the TWXABT series cover a measurement range from 1 Nm to 2000 Nm, making them ideal tools for production, assembly processes, as well as for quality control units and research and development processes.

Why the Bluetooth version is ideal for automation?

Wireless communication enables automatic real-time collection of measurement data and easy processing in your own software. The communication protocol is open and fully documented, allowing full integration with data collection systems and automation of the measurement process. Data can be handled in real-time, and manual reading of results is also possible via the FRANK software and USB connection if needed. The Frank software, along with the service password, is provided to the user.

Key Features of BMS - TWXABT Models:

Bluetooth version wrenches allow two-way communication with data collection systems.
Torque accuracy of ±1% clockwise and counterclockwise (CW/CCW)
Torque measurement accuracy ±1
Simultaneous torque and angular displacement measurement
Ability to set an additional control point for torque value – after reaching it, the RESIDUAL TORQUE function measures remaining torque
Wireless Bluetooth communication with data collection systems
Durable aluminum housing with IP65 rating
Fast USB-C charging
Optimized for TorqueGo software (Android/iOS) or AGS Software (Windows)
Frank software provided to the user along with service password
Interchangeable ratchet for flat or ring ends
Measurement results can be stored in the wrench memory and transferred to a PC using the included FRANK software, with full information on date, time, measurement unit, and selected program.

Each model comes with full warranty and post-warranty service directly from Poltorque and is supplied with a manufacturer's calibration certificate, optionally with a PCA certificate.
