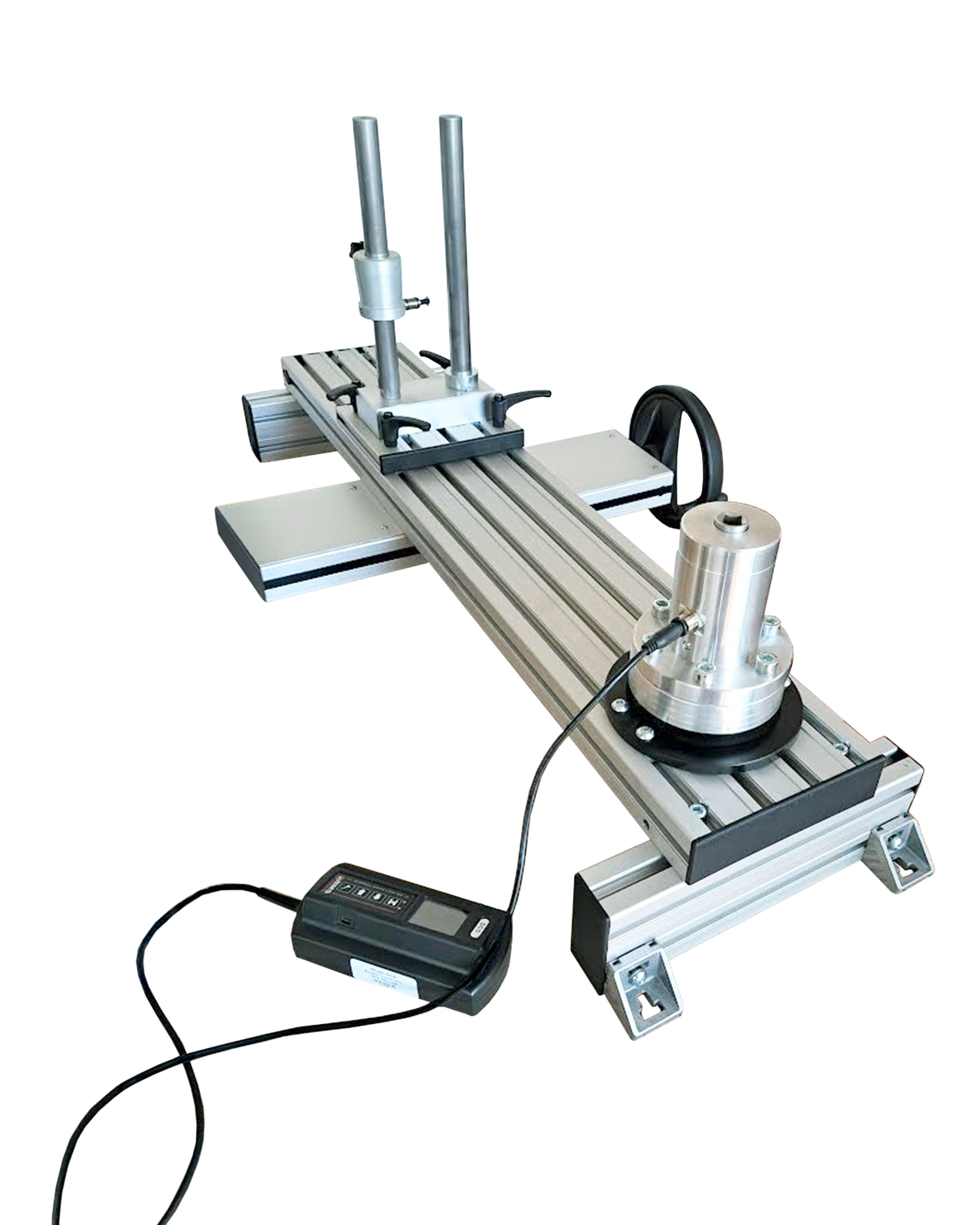

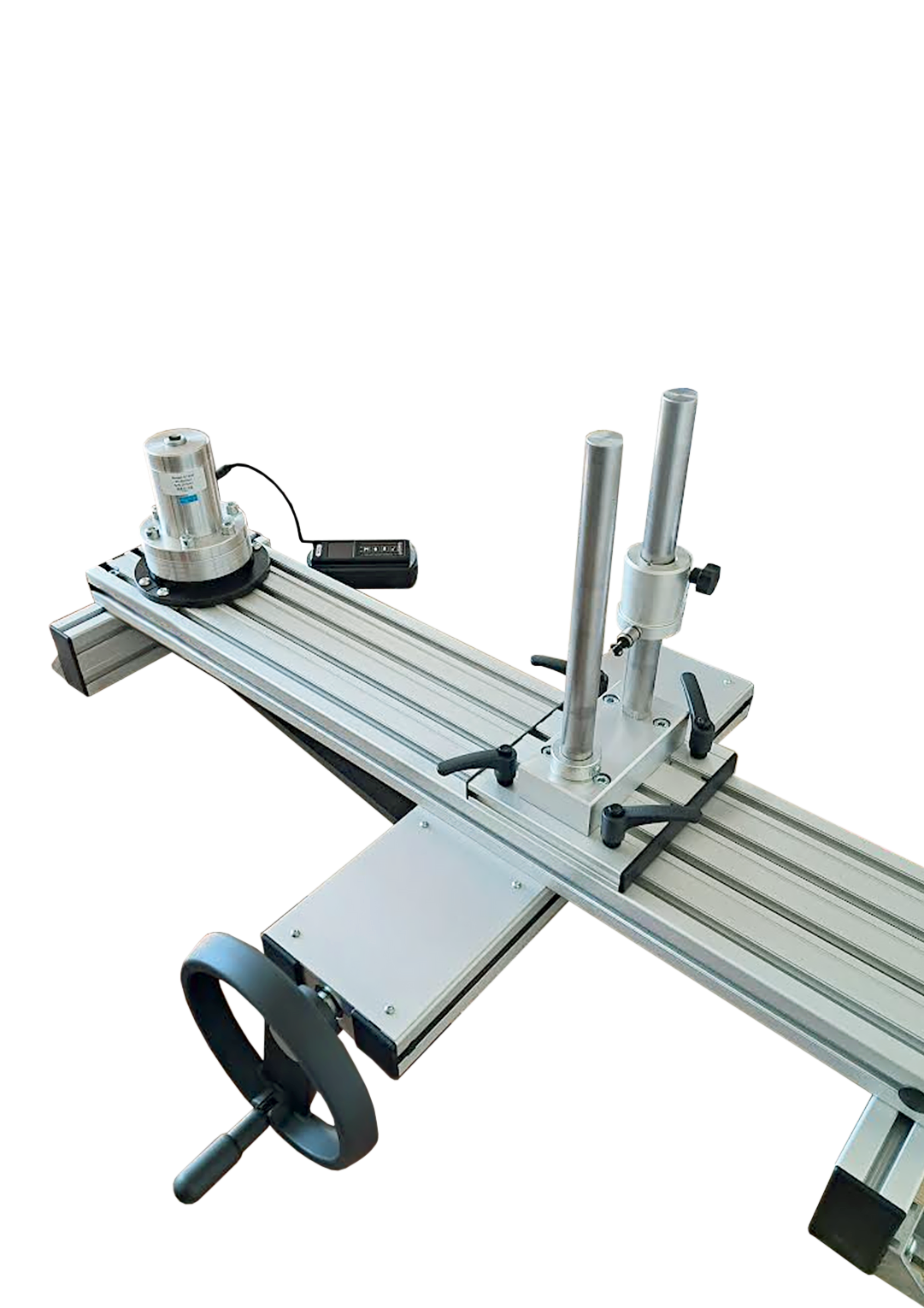

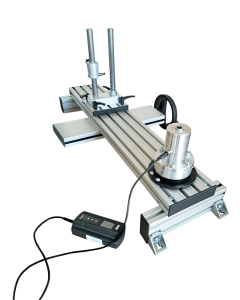

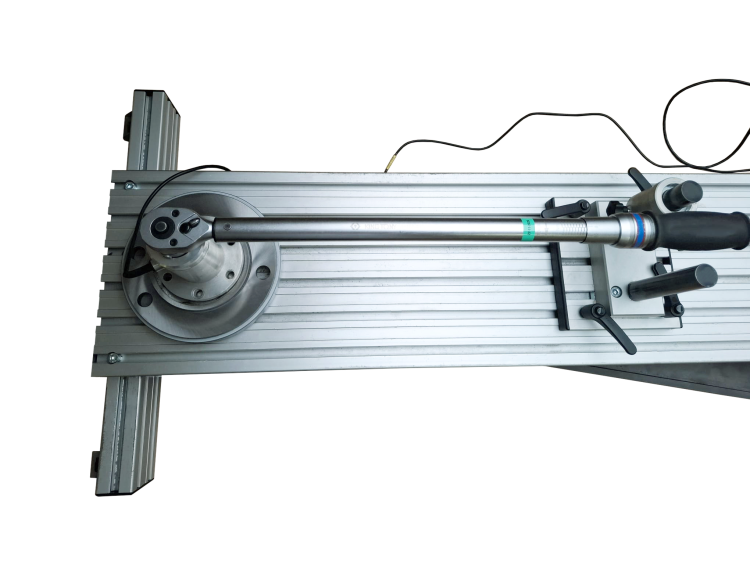

The torque application bench for torque wrenches up to 1000Nm

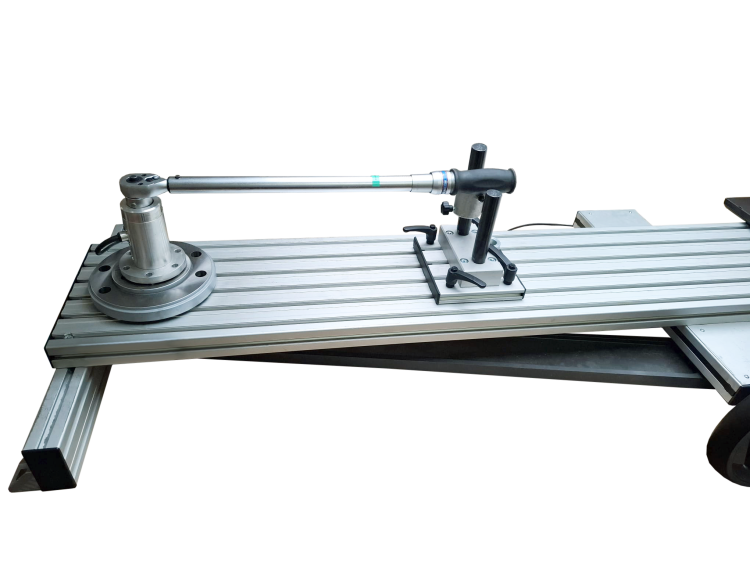

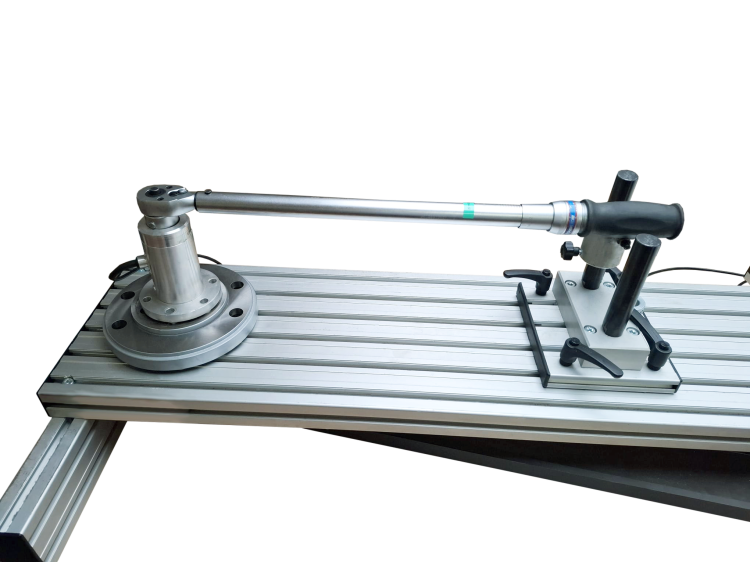

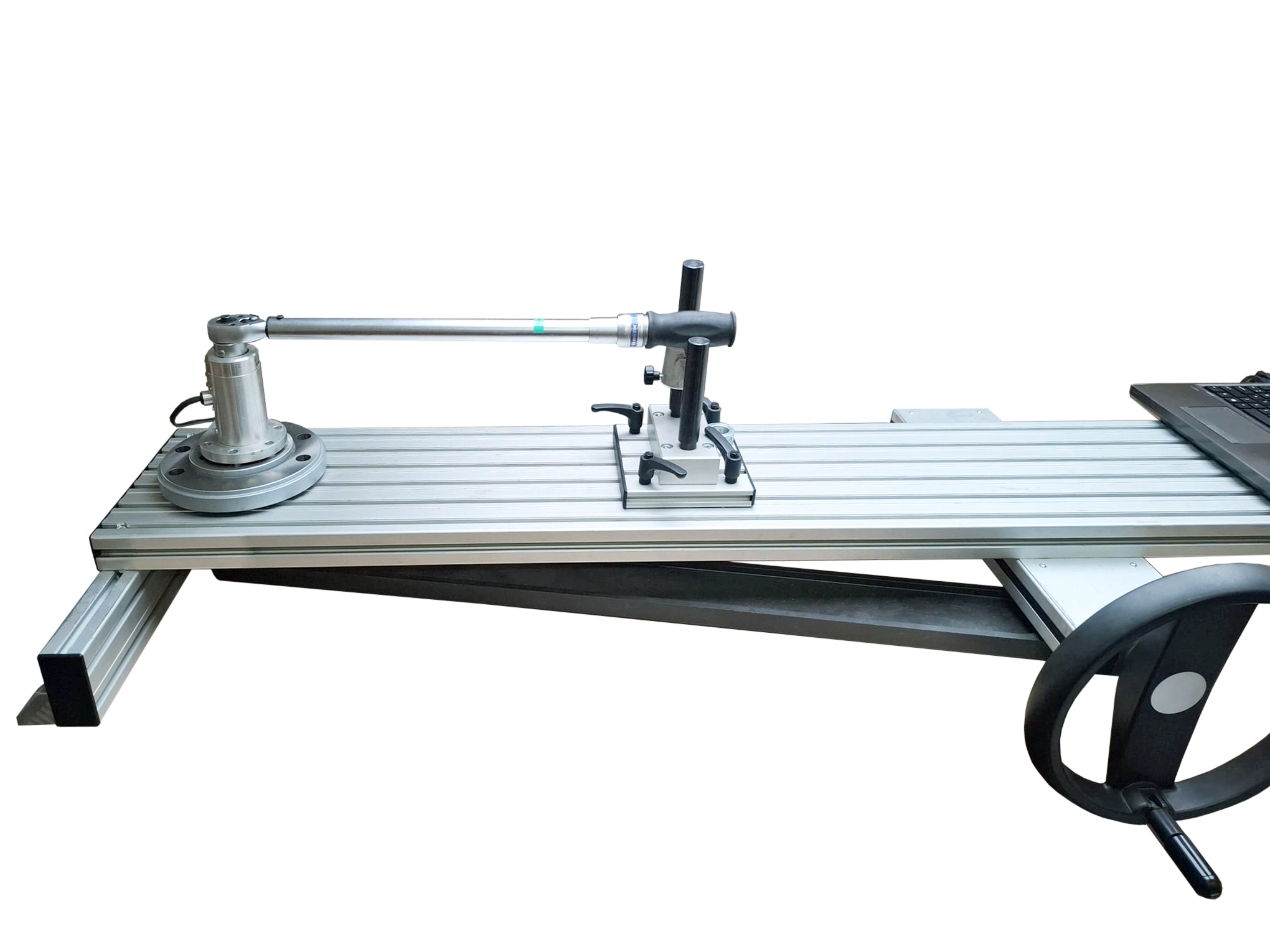

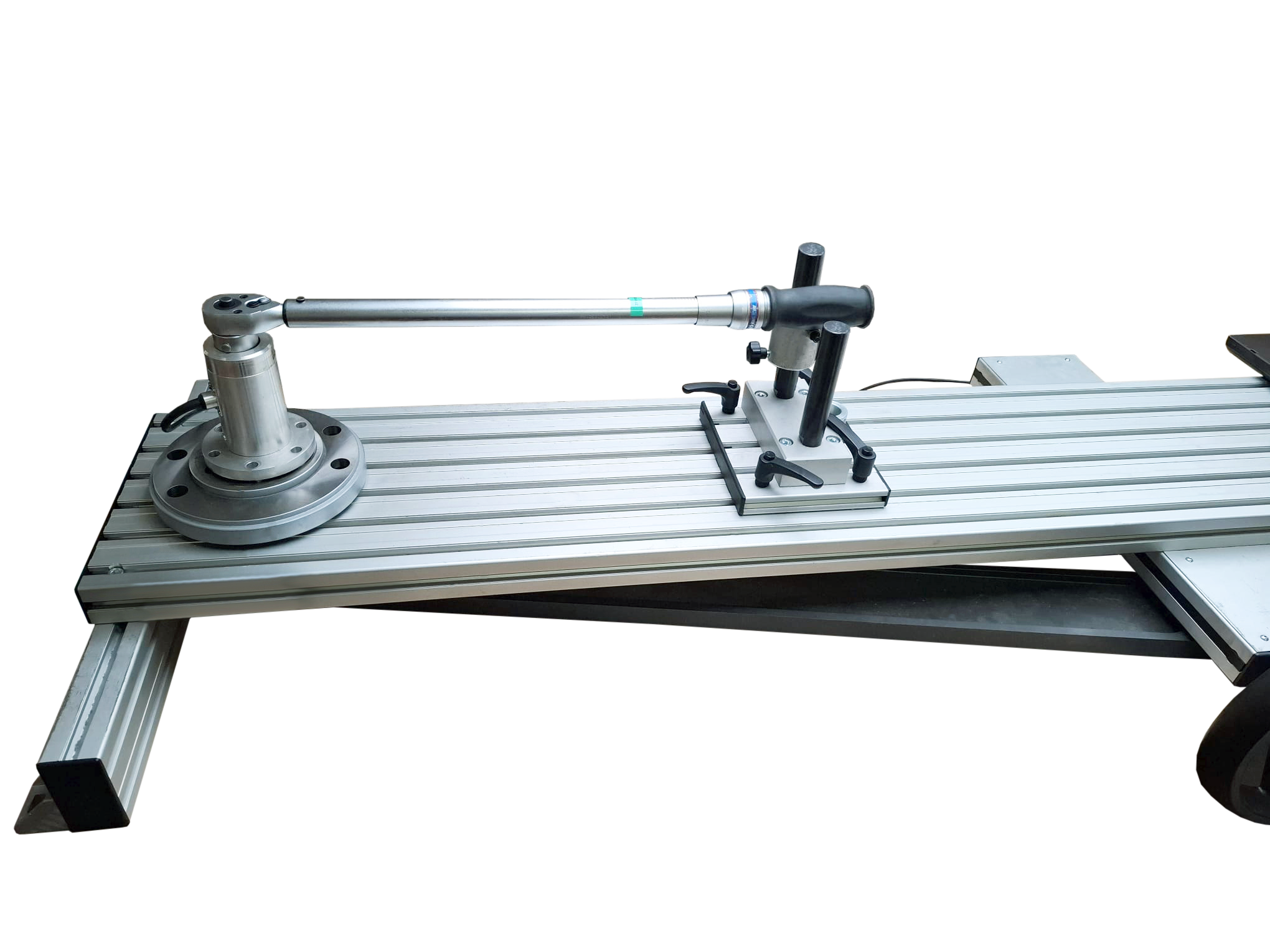

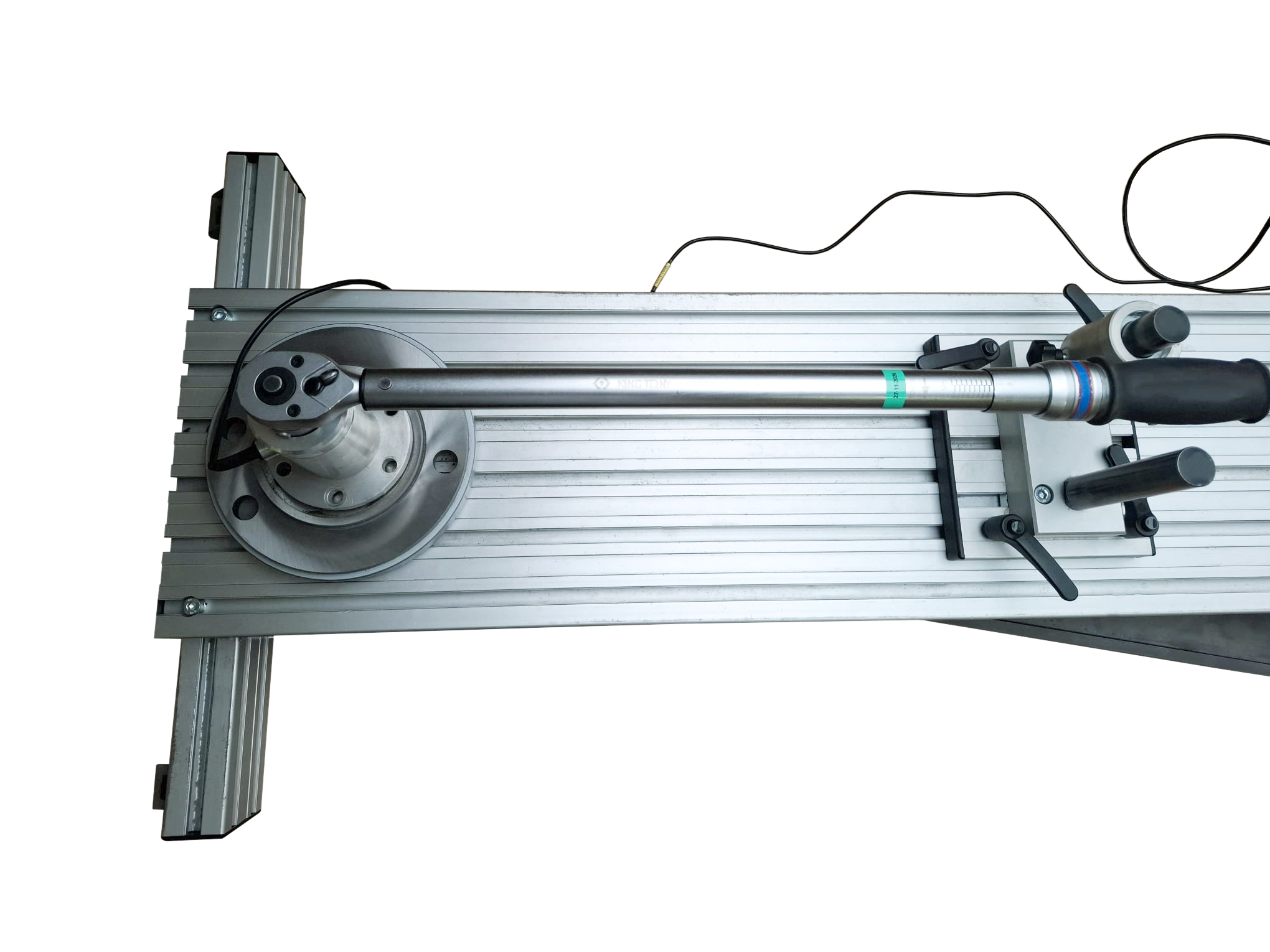

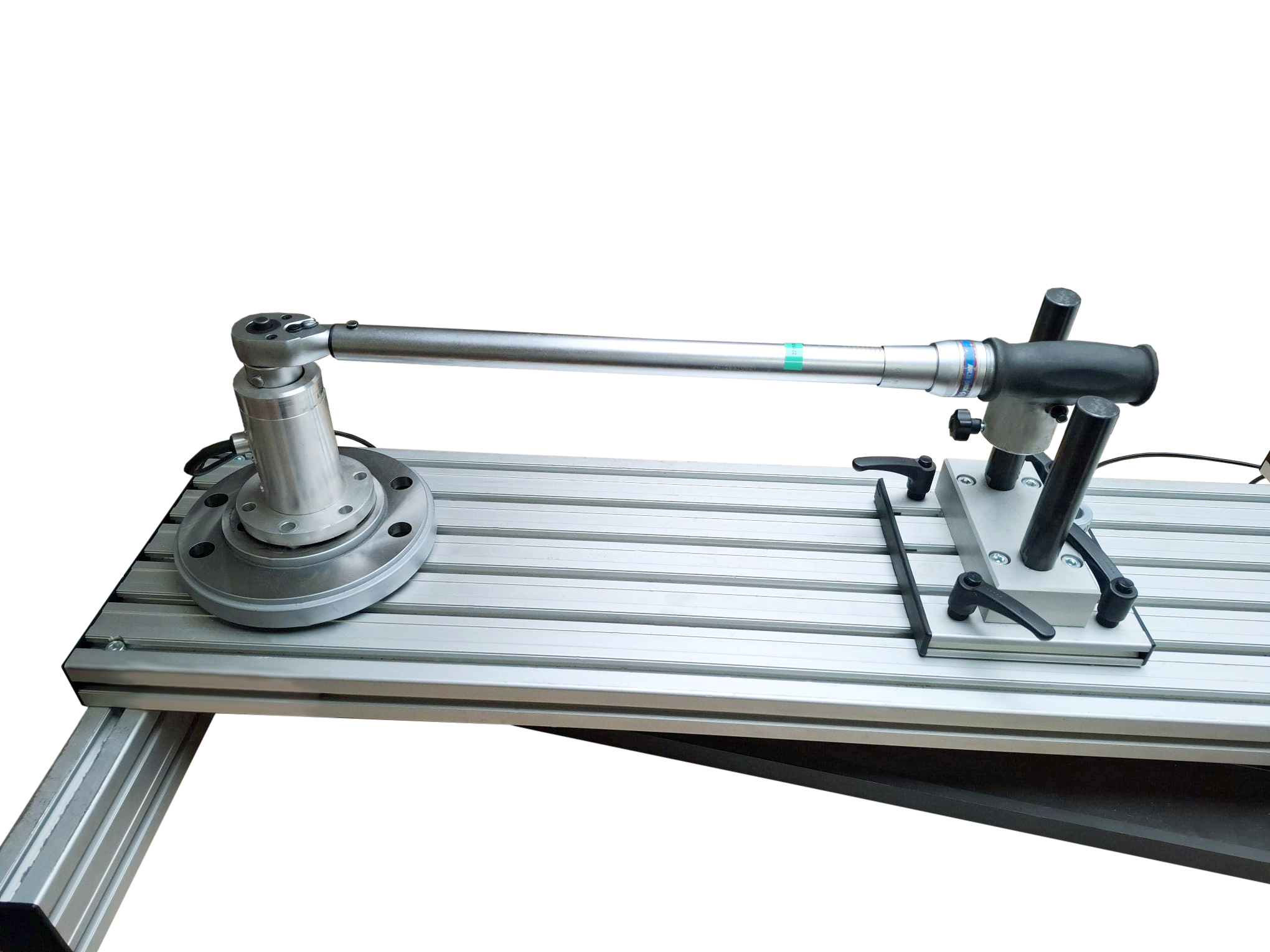

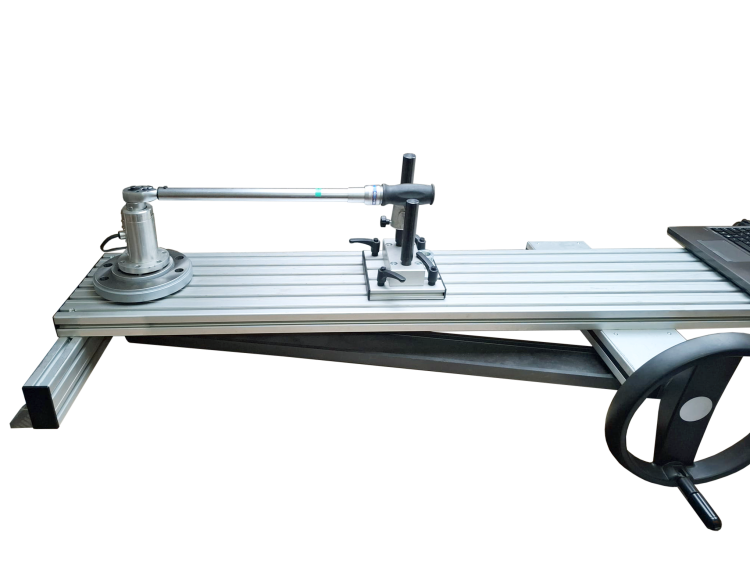

The bench enables precise leveling of tools during the verification and calibration process. It provides stable mounting of the transducer and ensures a fixed, unchanged position of the wrench throughout the entire process, eliminating errors caused by shifts in the force application point. During calibration or verification, the wrench remains stationary while the transducer performs a controlled rotational movement driven by a strong and highly durable crank mechanism.

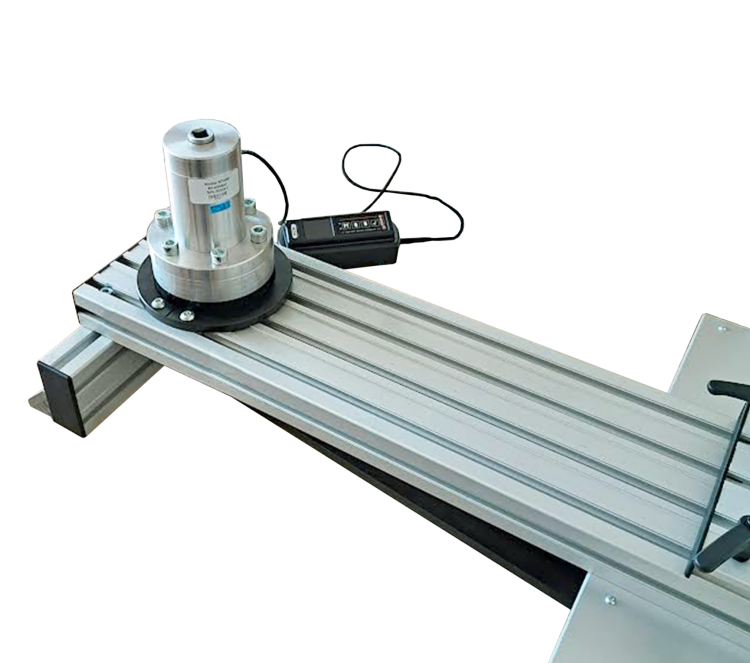

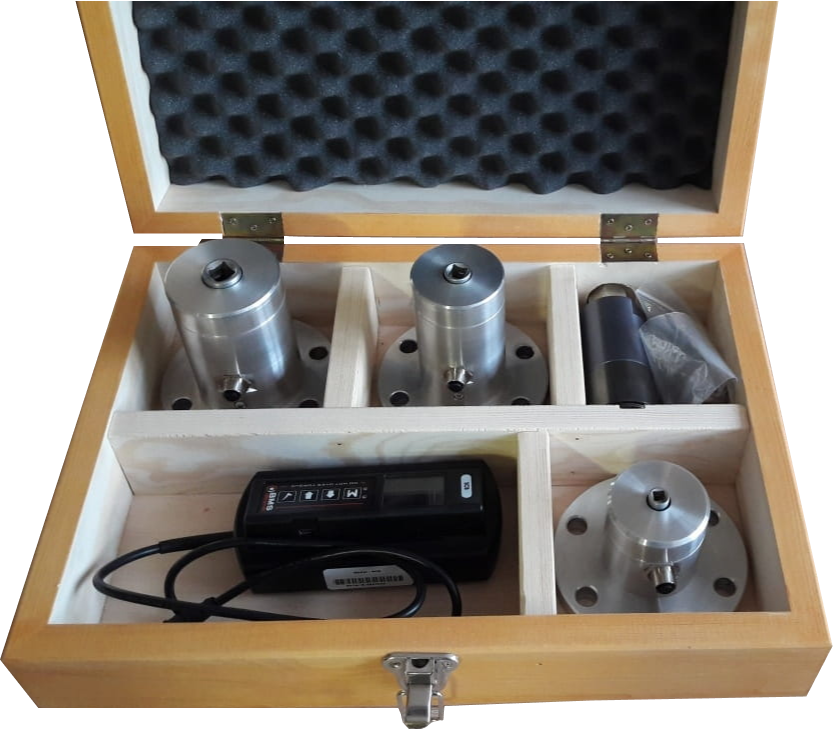

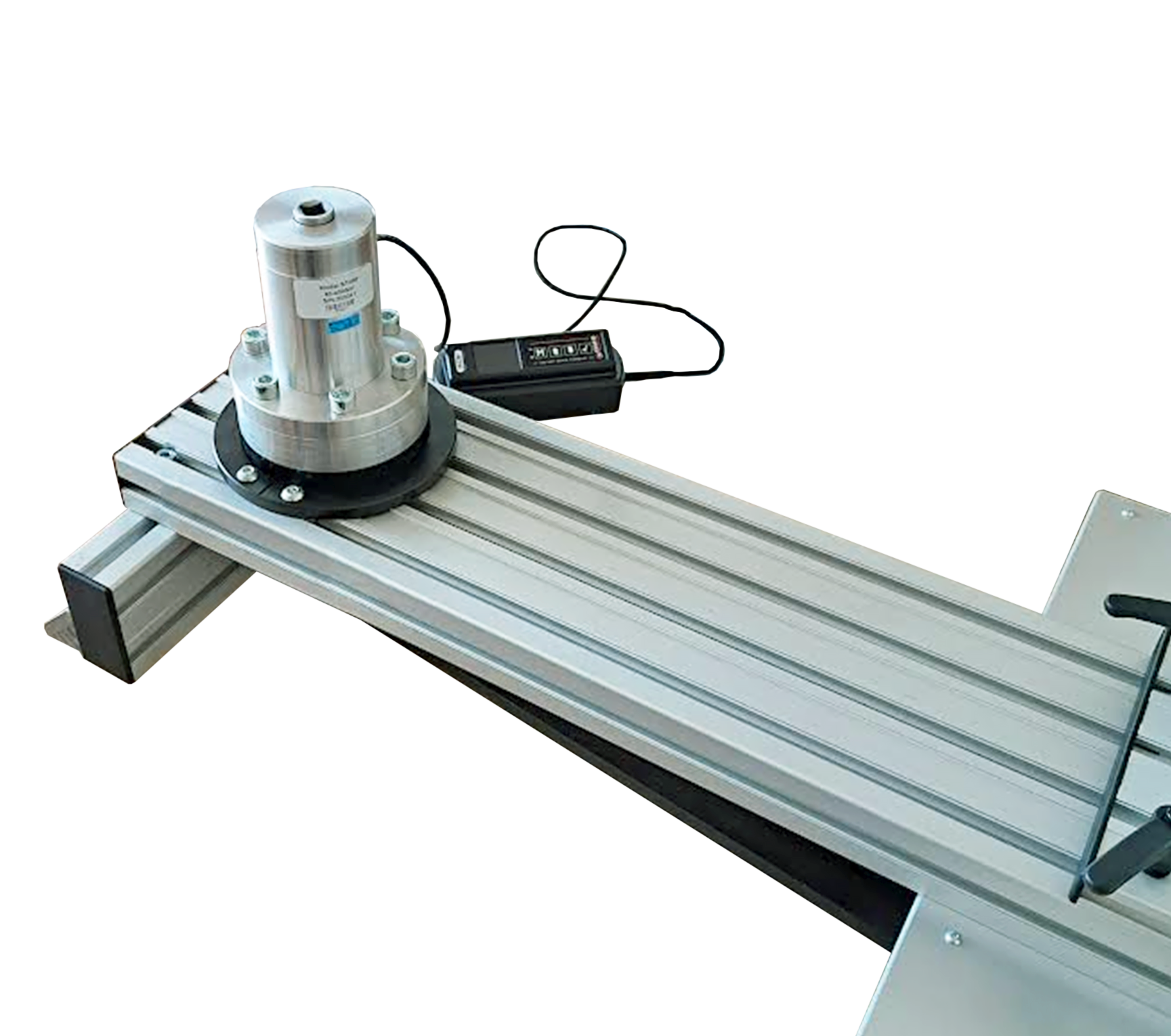

The bench is intended for use with BMS transducers with ranges up to 1000 Nm and allows quick replacement of transducers with different measurement ranges, matched to the ranges of the wrenches being tested. This significantly increases flexibility and efficiency during calibration tasks. The readout unit enables real-time monitoring of measured parameters and storage of obtained results in internal memory, making it easy to generate reports and results using the dedicated Frank software.

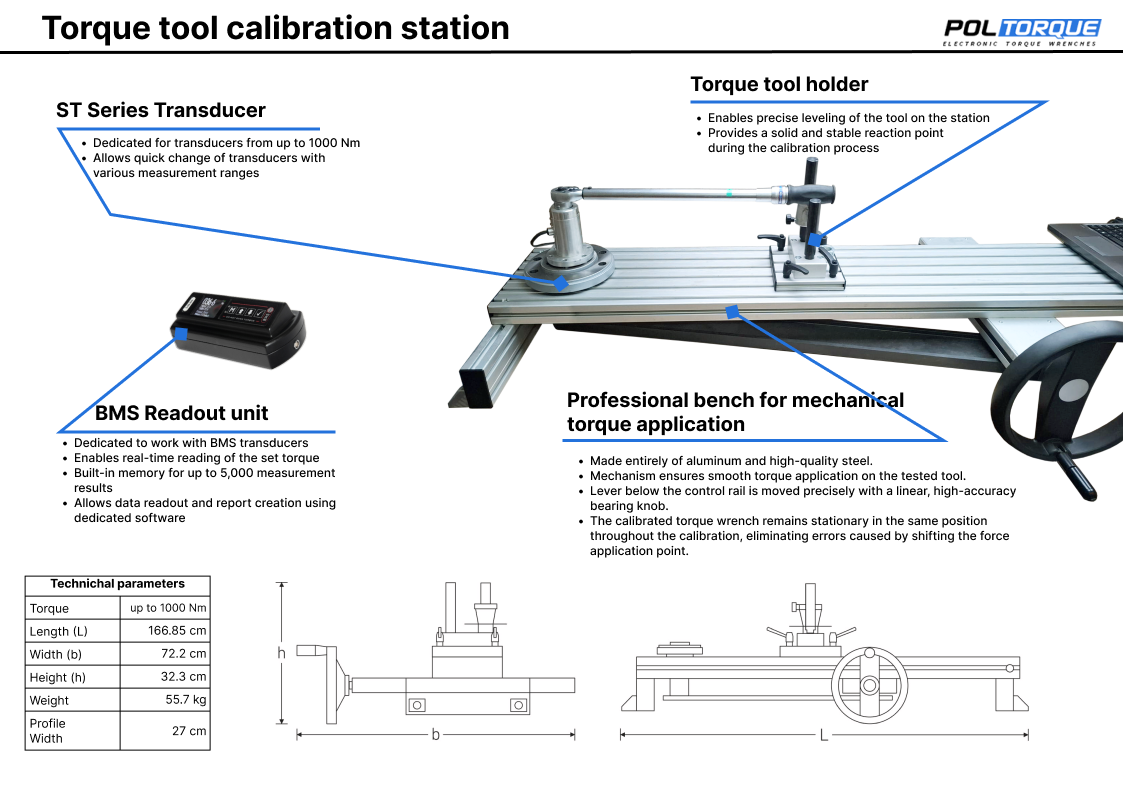

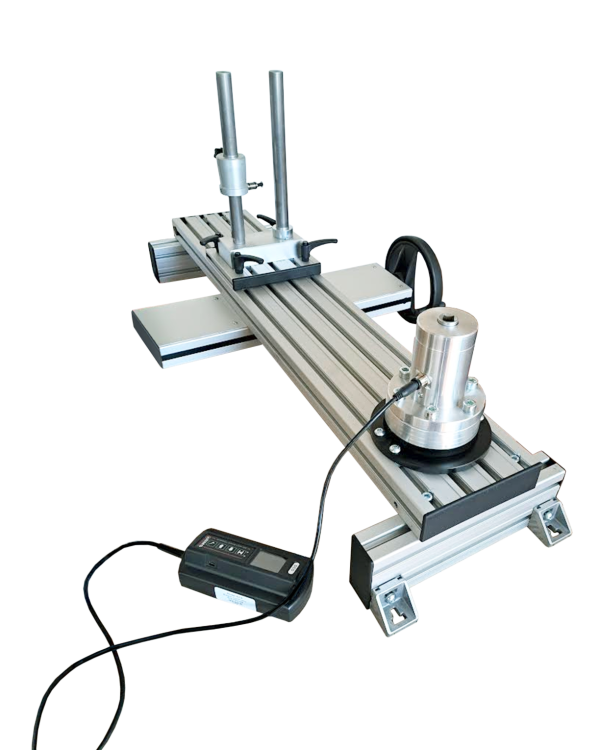

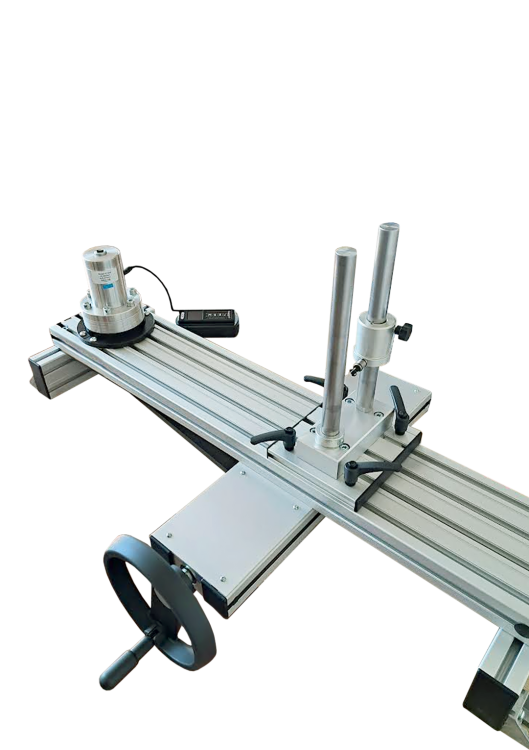

Manufactured entirely from aluminum and high-grade steel, the bench features a precision mechanism and a stable reaction point that ensure not only durability but also operator comfort. This professional mechanical torque application bench allows smooth and controlled loading of tested tools, while the adjustable reaction point guarantees high measurement accuracy regardless of wrench length. The bench is an ideal solution for users requiring calibration of torque wrenches and other measuring tools, while maintaining the highest standards of precision and repeatability in accordance with ISO 6789.

The bench is sold without any transducers. The transducer must be purchased separately.
