Manufacturer: BMS Ireland (go to products)

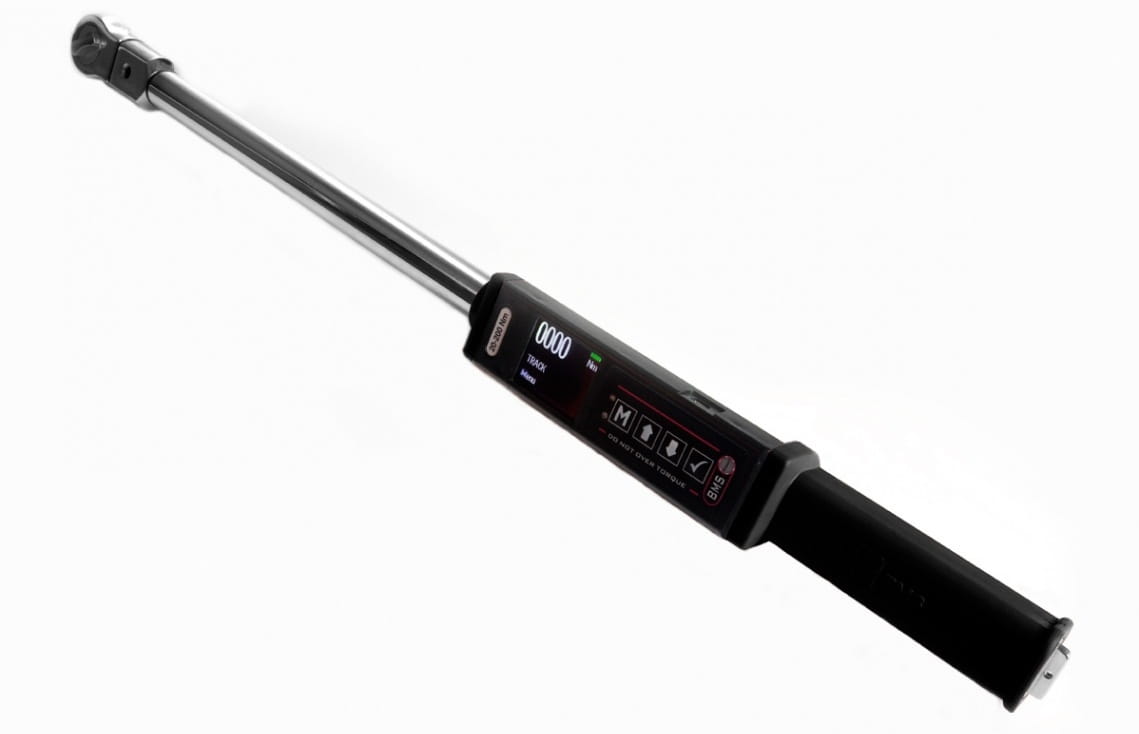

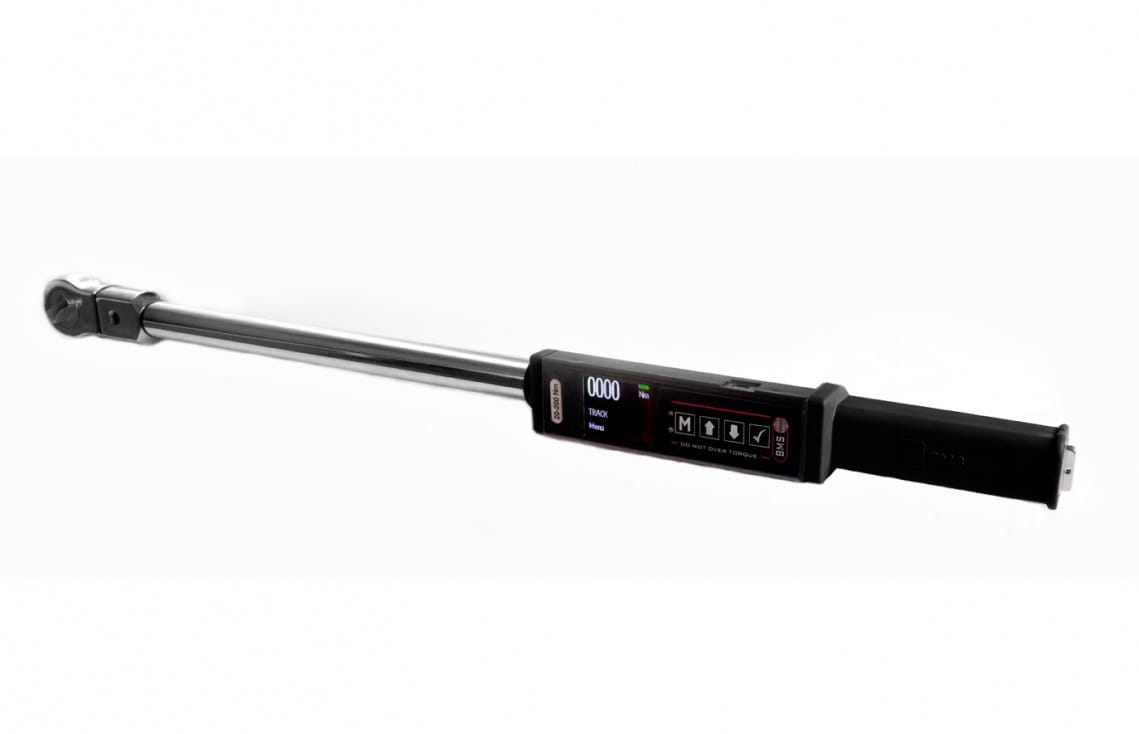

Electronic Torque 15-150Nm - with Torque Measurement- TW150S

Go to Product feedback

Electronic torque wrenches from the TW series are widely used in various fields—wherever extremely high measurement accuracy or data archiving of bolted connections is required. These electronic wrenches are particularly popular in the automotive and industrial sectors, as well as in quality control departments, maintenance teams, and units conducting durability or prototype testing. Each wrench is supplied with an individual calibration certificate from producer, confirming 1% measurement accuracy in both clockwise and counterclockwise directions (at every point across the full measuring range). An additional certificate from accredited laboratory can also be provided upon request. The wrench comes with free communication software, allowing the user to perform calibrations, program the wrench, or download stored data when needed.

Go to full description
with VAT without VAT
Price €761.69
incl. 23% VAT

Shipping costs are not included in the price.

szt.
Shipping time: 10 days

Product specification

Technical parameters

  • Adapter size 14x18 mm
  • Drive size 1/2"
  • Torque range [N·m] 15-150 N·m
  • Tolerance ±1% CW/CCW
  • Length 625 mm
  • Weight 1.3 kg

Description

All BMS electronic torque wrenches are characterized by extremely high measurement accuracy of 1%
in both clockwise and counterclockwise directions (at every point across the full measuring range).
This level of precision makes them ideal tools for precision assembly and quality control, as well as for all
types of prototype and durability testing.

The user can save up to 99 tightening programs, each with specified minimum, optimal, and maximum torque values. The tool responds with color changes on the display and acoustic signals upon reaching each specified torque value. The maximum torque value achieved can be stored in the tool's internal memory.

All results saved in the internal memory can be transferred to a PC via FRANK software, which is supplied with the tool. Each measurement result has assigned a date, time of measurement, unit of measurement—if the tool was operating in Peak mode—and the tightening program number selected by the operator—if the tool was operating in Preset mode.


The wrenches are supplied with manufacturer-issued calibration certificates, and an additional certificate
from an accredited laboratory can be provided upon request (at extra cost).


BMS electronic torque wrenches cover a measuring range from 1 Nm to 2000 Nm. In every model, the
ratchet head can be easily replaced with an open-end or ring-end head, depending on the user's needs.


One of the key advantages of this brand is that each wrench comes with PC communication software, and
a service password is provided—allowing users to perform calibrations at any laboratory of their choice.
Large, high-contrast OLED displays make it easy to read measurement results, while additional visual and
audible indicators provide even greater control over the tightening process.


Key advantages of BMS electronic torque wrenches:

  • Extremely high measurement accuracy - 1% in both directions
  • Internal memory for up to 10,000 measurements
  • Large, full-color OLED displays
  • Interchangeable ratchet head with open-end or ring-end attachments
  • PC communication software included
    Service password provided to the user
  • Models available from 1 Nm up to 2000 Nm


All measurement data can be stored in the device's internal memory and transferred to the user's database
using the included FRANK software.
The wrench menu is available in multiple languages: Polish, English, French, German, Portuguese, and
Italian.


We provide full warranty and post-warranty service for all offered torque wrench models.
